Shelly 1L

  • November 30, 2024 at 5:16 PM
  • 0 Replies

VPN/Proxy detected

It appears that you are using a VPN, or proxy service. Please note that using such a service may limit the functionality of this website.

Anschlussdiagramme

Images

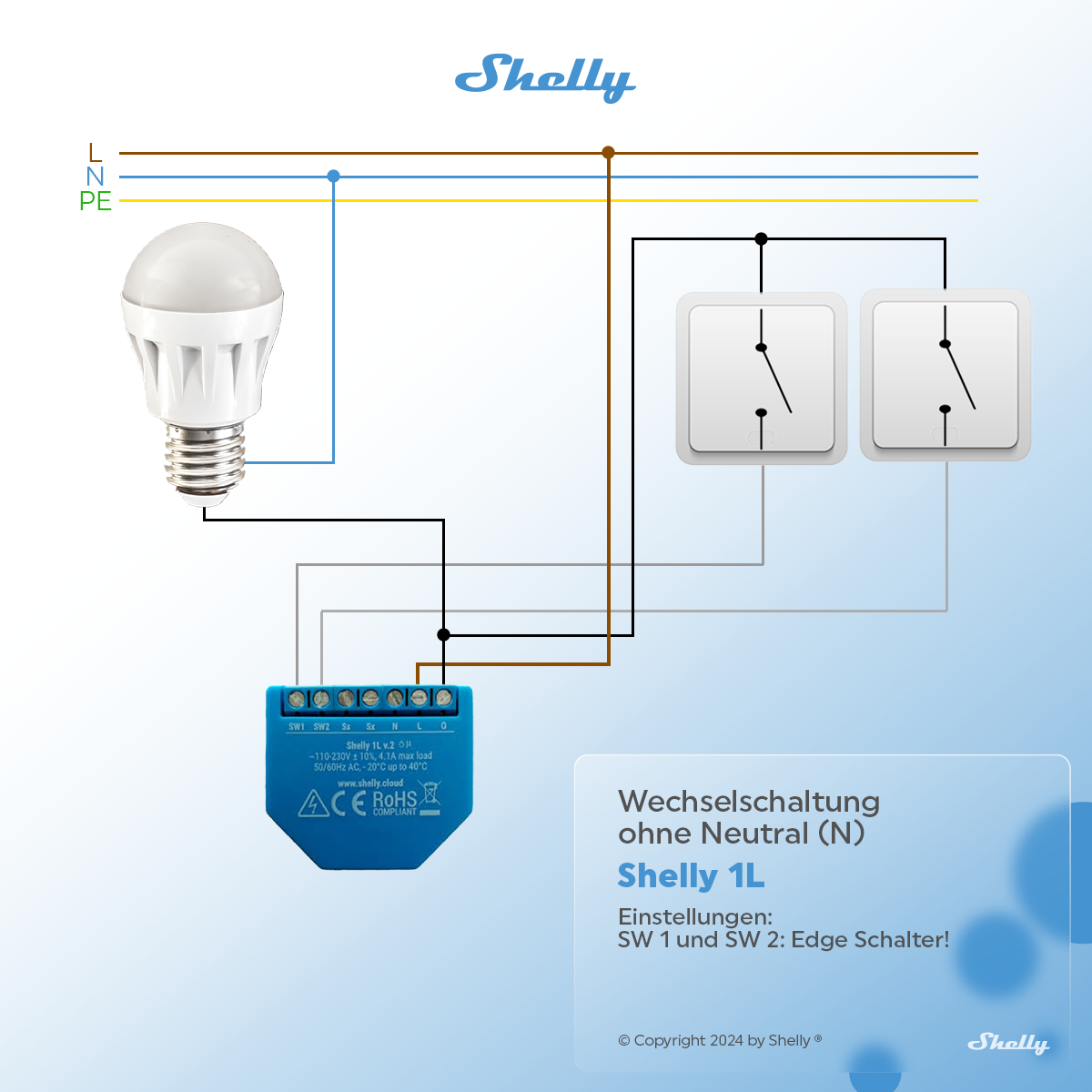

  • 1L Wechselschaltung ohne N.png
    • 595.07 kB
    • 1,200 × 1,200
  • 1L Tasterschaltung_.png
    • 605.44 kB
    • 1,200 × 1,200

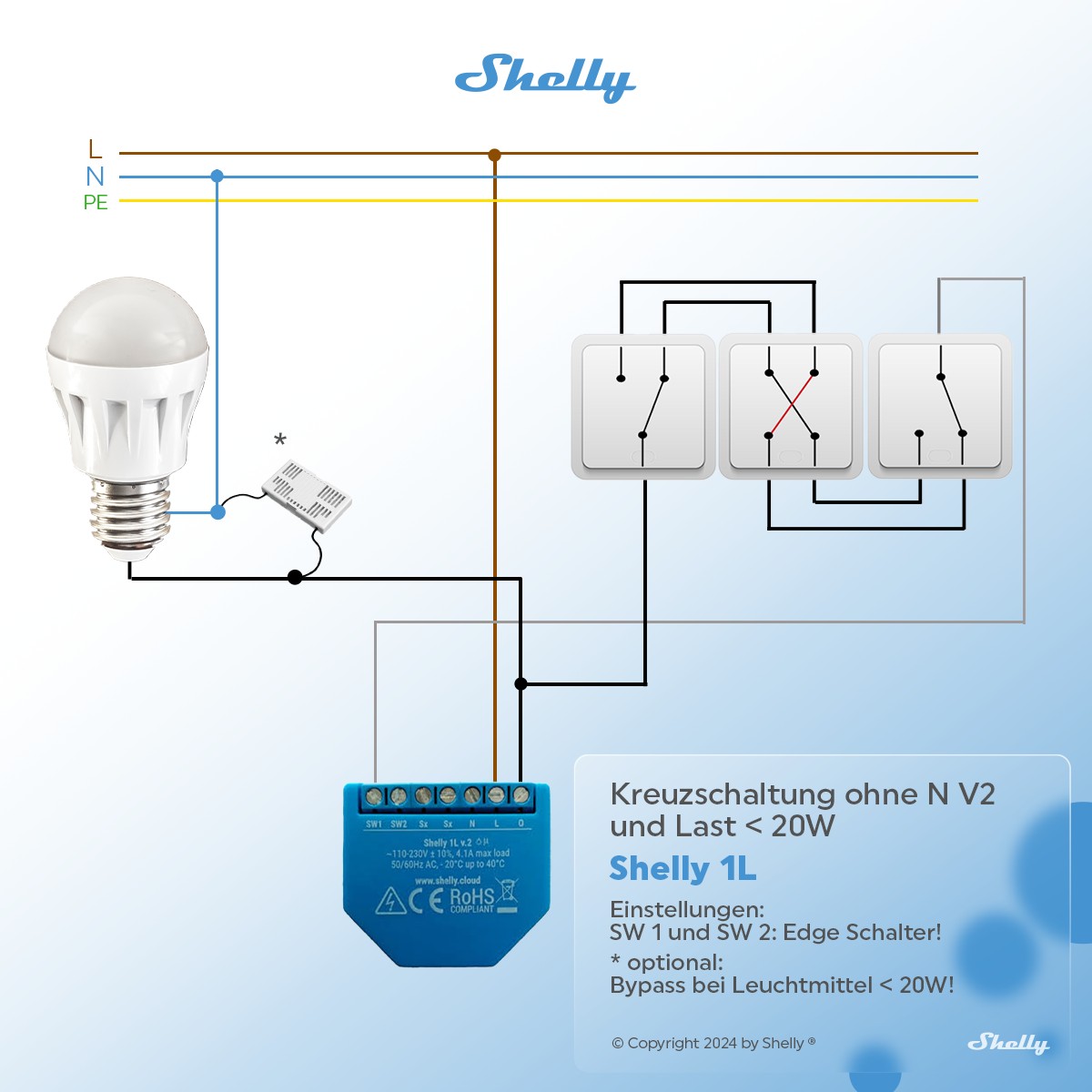

  • 1L Kreuzschaltung ohne N & Bypass V2.png
    • 626.87 kB
    • 1,200 × 1,200
  • 1L Wechselschaltung ohne N & Bypass V2.png
    • 618.3 kB
    • 1,200 × 1,200

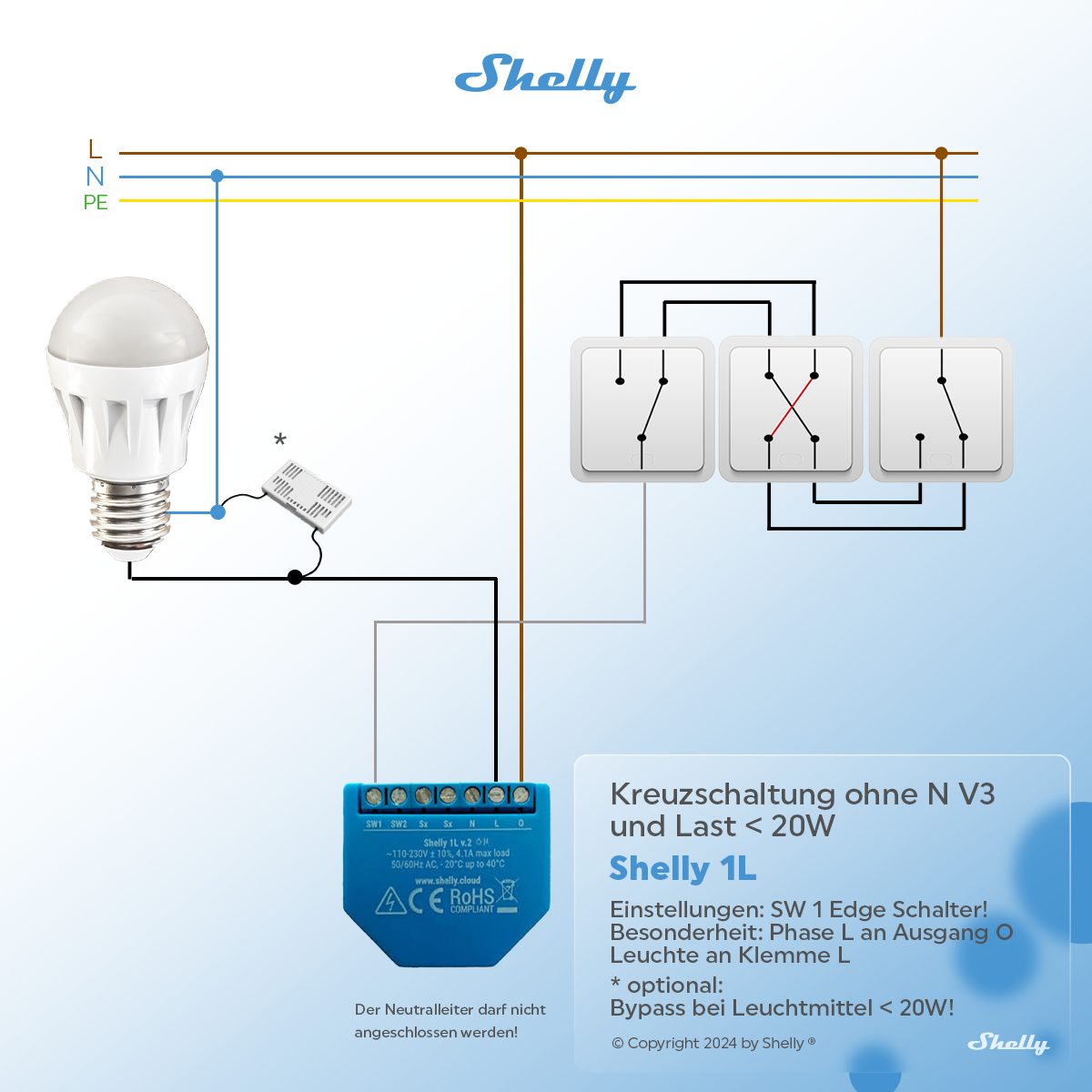

  • 1L Kreuzschaltung ohne N & Bypass V3.png
    • 641.22 kB
    • 1,200 × 1,200
  • 1L Kreuzschaltung ohne N & Bypass V1.png
    • 625.4 kB
    • 1,200 × 1,200

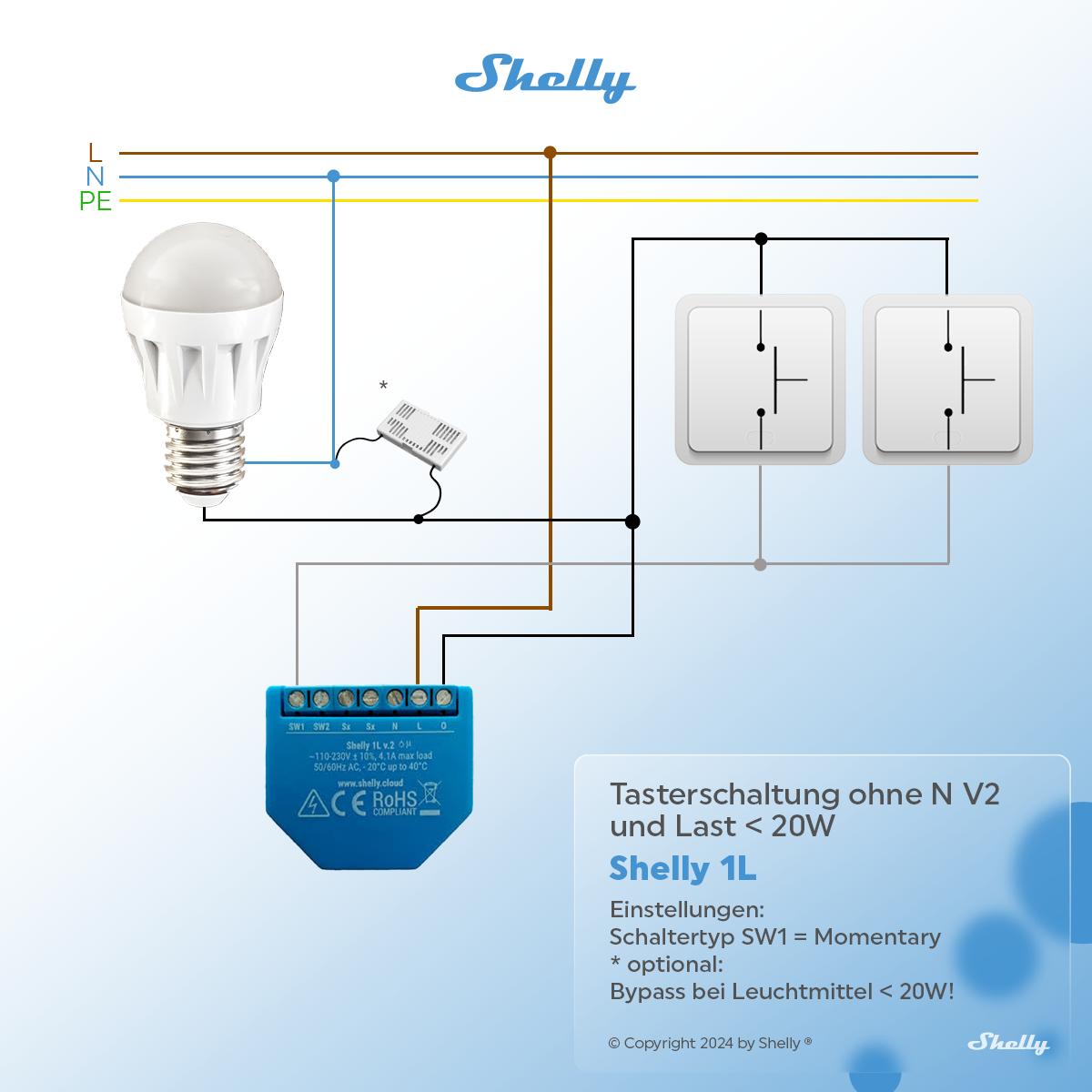

  • 1L Tasterschaltung ohne N & Bypass V2.png
    • 617.02 kB
    • 1,200 × 1,200
  • 1L Wechselschaltung mit N.png
    • 594.17 kB
    • 1,200 × 1,200
  • 1L Tasterschaltung ohne N & Bypass V1.png
    • 615.48 kB
    • 1,200 × 1,200
  • 1L Wechselschaltung ohne N & Bypass V3.png
    • 617.88 kB
    • 1,200 × 1,200
  • Next Article Shelly 3EM
