With firmware 1.12 the 3EM is finally able to measure the current flowing through the neutral conductor.
This requires a fourth 120A Transformer/Measuring Transformer which must first be calibrated across one of the other 3 phases and then wired around the neutral wire.
It also allows the user to place a trip signal to signal unusual deviations in the total current flowing through the three phases compared to that through the neutral.
Calibration of the N transformer (example calibration with phase A) :
1. Latch the new N-transformer together/next to the existing transformer on phase A, the phase transformer terminal remains latched and unchanged.

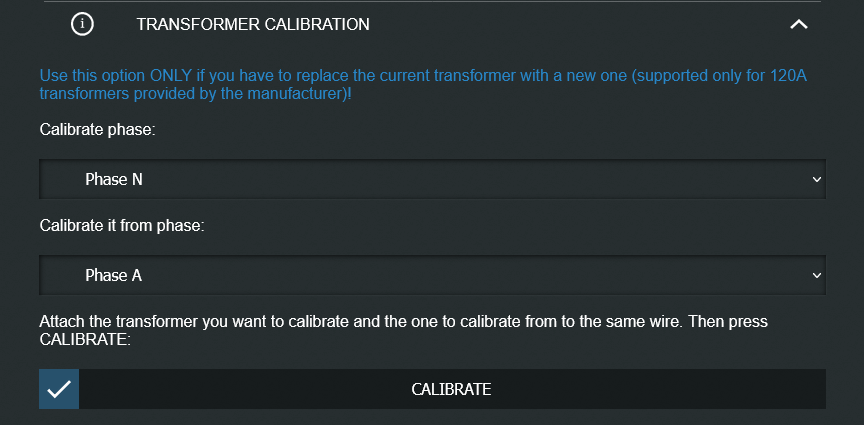

2. In the WEB-UI under Settings -> Transformer choose Calibration Calibrate phase: N -> Calibrate it from phase: A
3. If the calibration fails, flip/reverse the N-transformer clamp and try to calibrate again.
4. If the calibration was successful, dismantle the transformer for N and clamp it to the neutral wire.
These calibration instructions and the Transformer Calibration function can also be used to recalibrate the phase A / B or C measuring transformers, e.g. after replacement.
Note: for the calibration, a minimum load must be present on the phase on which the two converters are clamped.
ATTENTION: For a correct measurement use only original 120A Shelly transformer clamps. Using clamps from other manufacturers can destroy the device.
