Only for Shelly 2 / 2.5

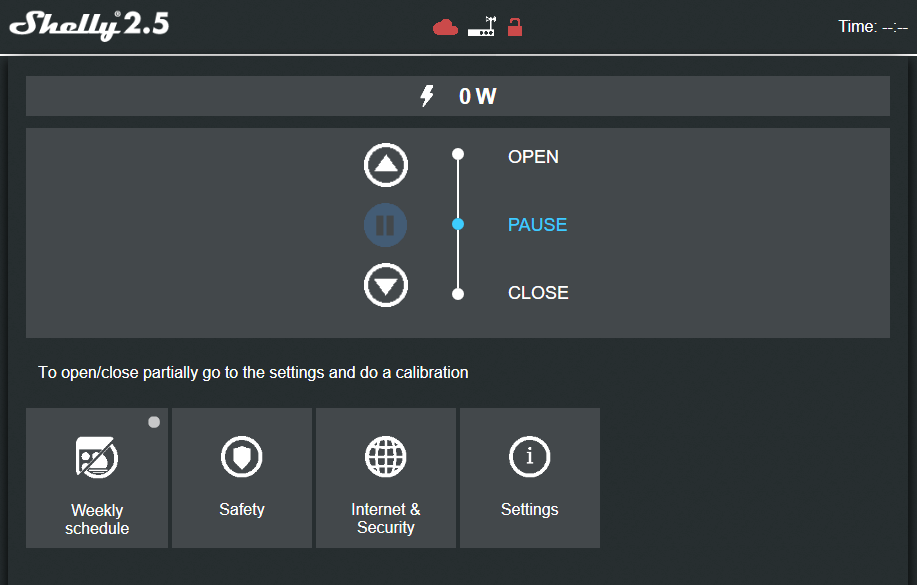

Homepage
Safety

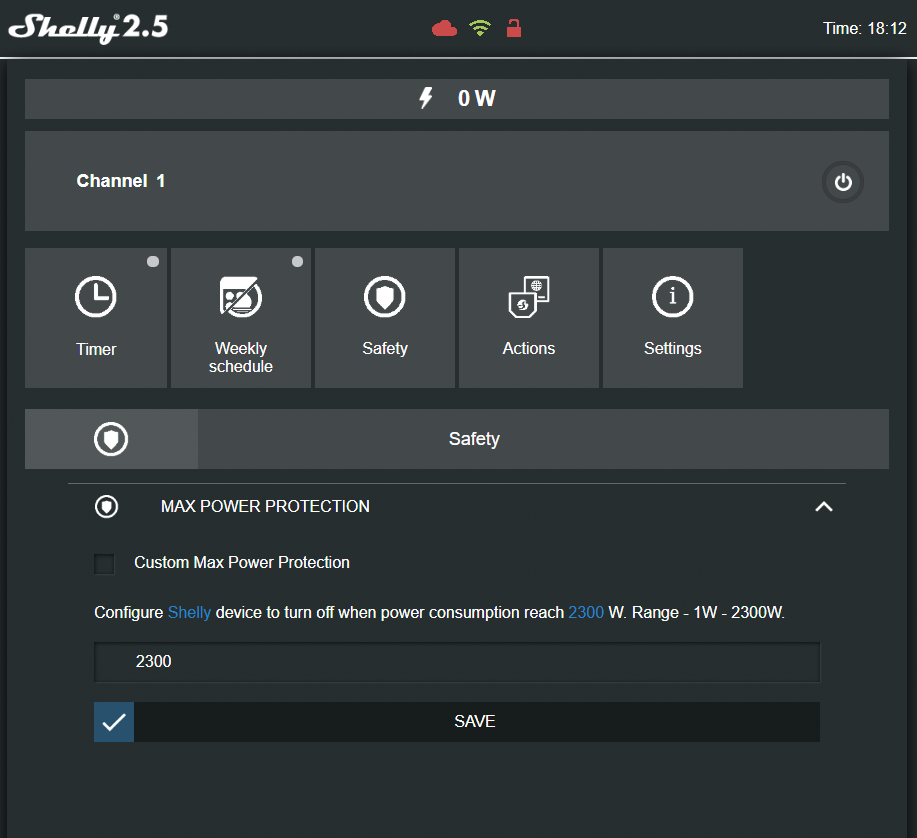

MAX POWER PROTECTION
Custom Max Power Protection - Der Shelly 2.5 schaltet bei vordefiniertem maximalen Leistungswert AUS. Bereich: 1-2300W.
Nach Eingabe des gewünschten Leistungswertes mit SAVE bestätigen.
in Relay Mode: Safety and Actions are not included in the main overview!
Settings only possible after selecting the channel (channel 1 or 2)! (see picture "Safety")

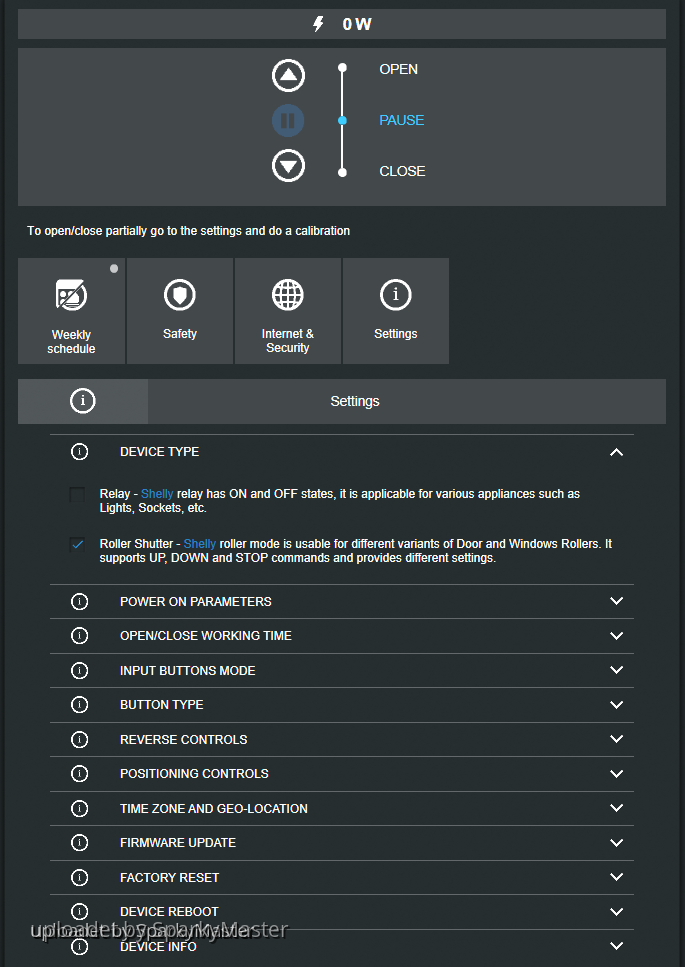

Settings

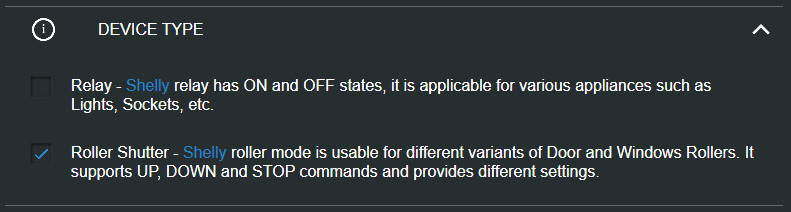

DEVICE TYPE
Selection: Relay- or Roller Shutter mode
Relay - Configure Shelly Device as a 2-circuit relay, two separately switchable relay outputs O1 / O2
Roller Shutter - Configure Shelly Device in Roller Shutter-Mode, software channel lock
POWER ON PARAMETERS
This sets the Devices‘ default state when powered from the power grid. As Initial Inclusion; after a power failure.

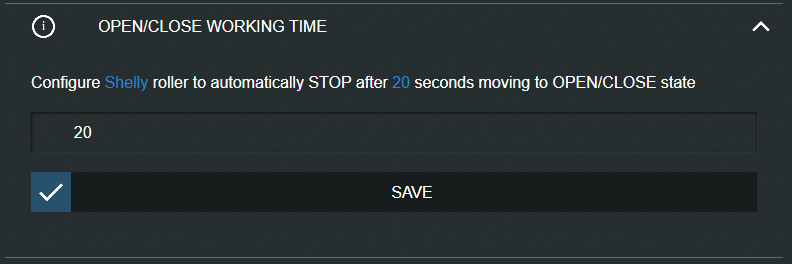

OPEN / CLOSE WORKING TIME
Time setting in seconds for automatic STOP-function when opening / closing the shutter.
After typing the desired time, press Save.

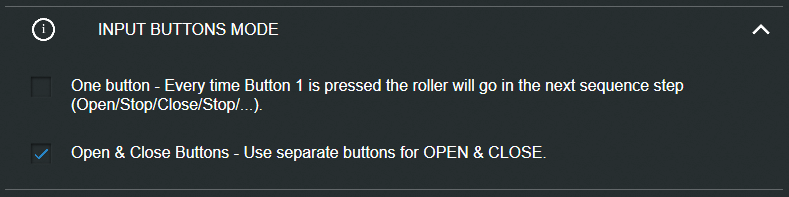

INPUT BUTTON MODE
Selection of the button or switch mode
One button - each press changes the action (UP / STOP / DOWN / STOP / ...)
Open & Close Buttons - two separately buttons / switches each direction (UP / DOWN)

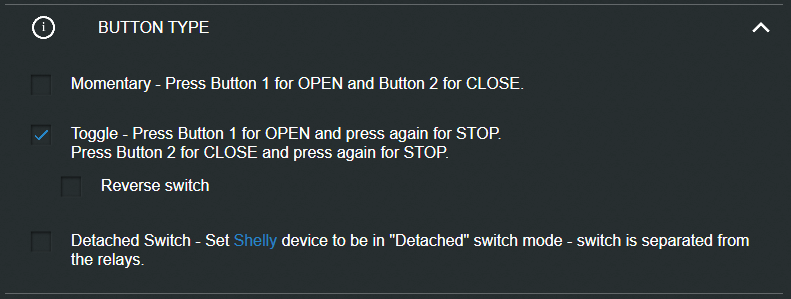

BUTTON TYPE
Selection of the button or switch type
Reverse switch - Reversing the switch UP / DOWN position.
Detached Switch - Detached mode is used when you don’t want the physical switch that is wired to the Shelly to directly control the electrical consumer, but instead you’ll use the “action” menu, or MQTT, API, ect. to control some sophisticated action.
You can also use detached mode to temporarily disable the physical switch.
REVERSE CONTROLS
Reverse inputs - In the case of a hard-to-reach switch installation, this option can be activated.
POSITIONING CONTROLS
Enable positioning controls - Disable or Enable positioning controls
CALIBRATE - Start the Shutter Calibration
More information: calibration Shelly 2 / 2.5 - Roller shutter - mode
