Only for Shelly Plug & Shelly Plug S
Homepage
Safety
MAX POWER PROTECTION
Custom Max Power Protection - Configure Shelly to turn off when a defined power consumption is reached. Range: 1-3500W.
After typing the desired power consumption, press Save.

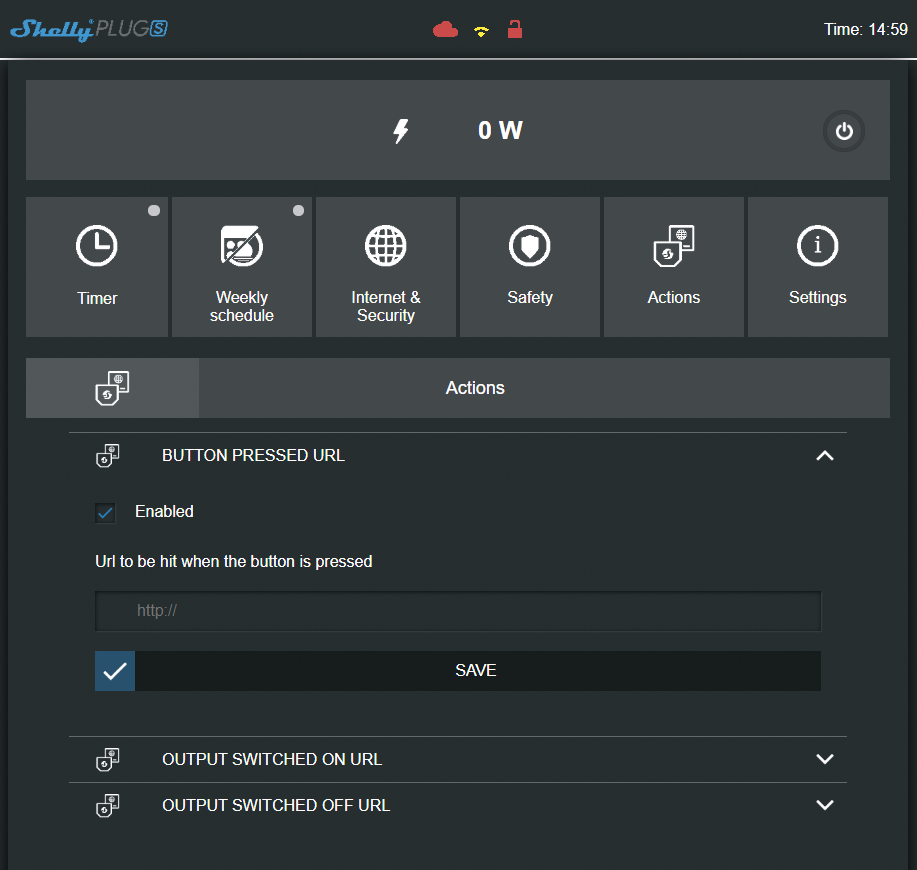

Actions
Ability to manage other devices that have an HTTP-API or acivate scene in IFTTT.
More information: Direct Device to Device communicaton (DDD)
BUTTON PRESSED URL - Device-Button pressed -> execution URL
OUTPUT SWITCHED ON URL - Output (Relay) swiched ON -> execution URL
OUTPUT SWITCHED OFF URL - Output (Relay) swiched OFF -> execution URL
Settings
LED LIGHT CONTROL
Configure Shelly Plug S device state LED light.
Disable Wi-Fi state light - Disable or Enable State-WiFi LED light. Activated LED lights up blue.
Disable Power On state light - Disable or Enable State-Power LED light. Activated LED lights up red.
LED light-State:
Blue - flashing quickly - AP Mode
Blue - flashing slowly - CM Mode (no Cloud)
Blue - still - CM Mode (Cloud)
Red - still - Relais EIN
Red & Blue - flashing quickly - FW Update
