Shelly Pro
Shelly Pro RGBWW PM
March 4, 2026 at 7:31 PM
Anschlussdiagramme
Pro RGBWW
Images

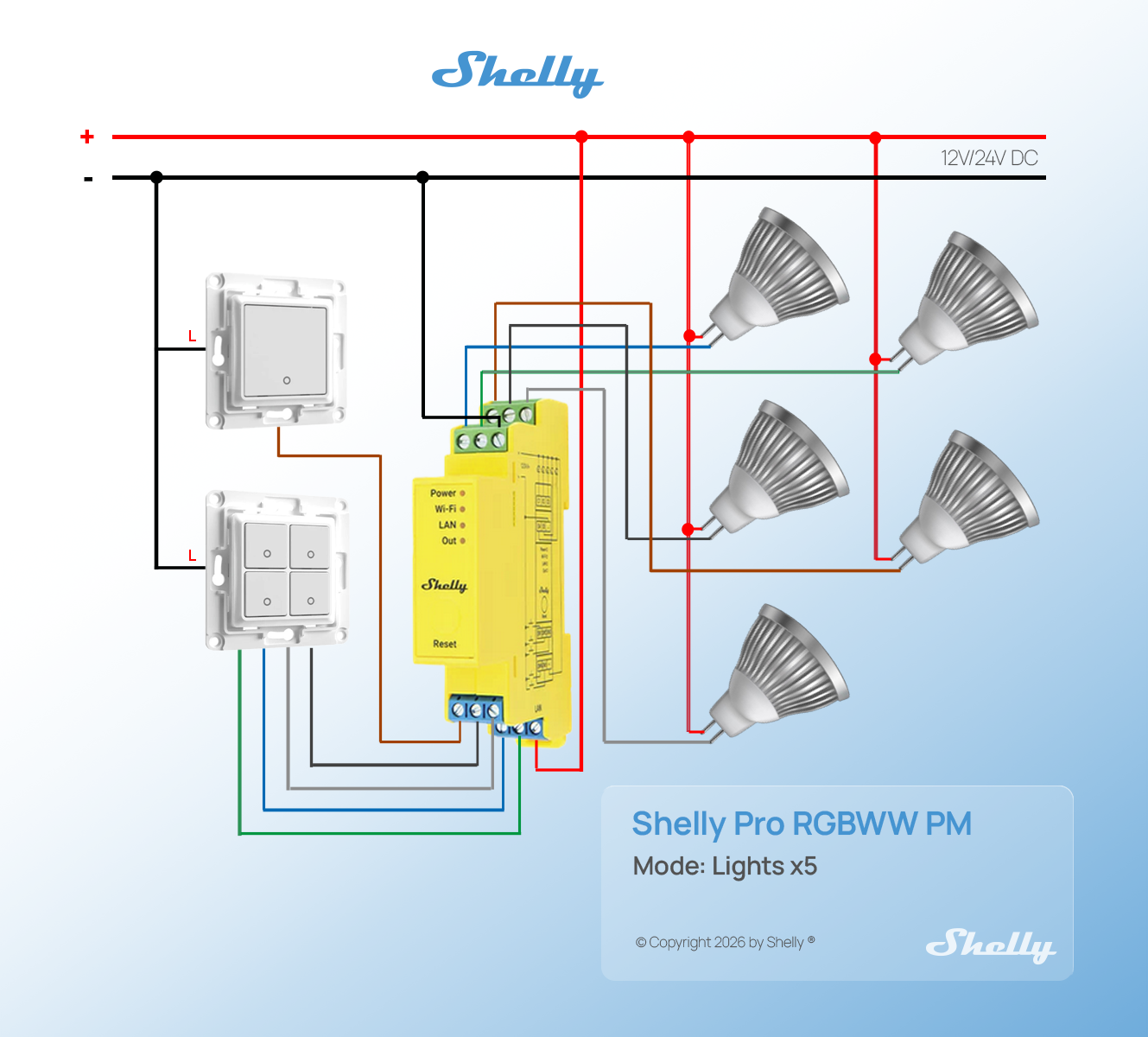

Pro RGBWW PM 5x LED Bulb.png
688.3 kB
1,329 × 1,200

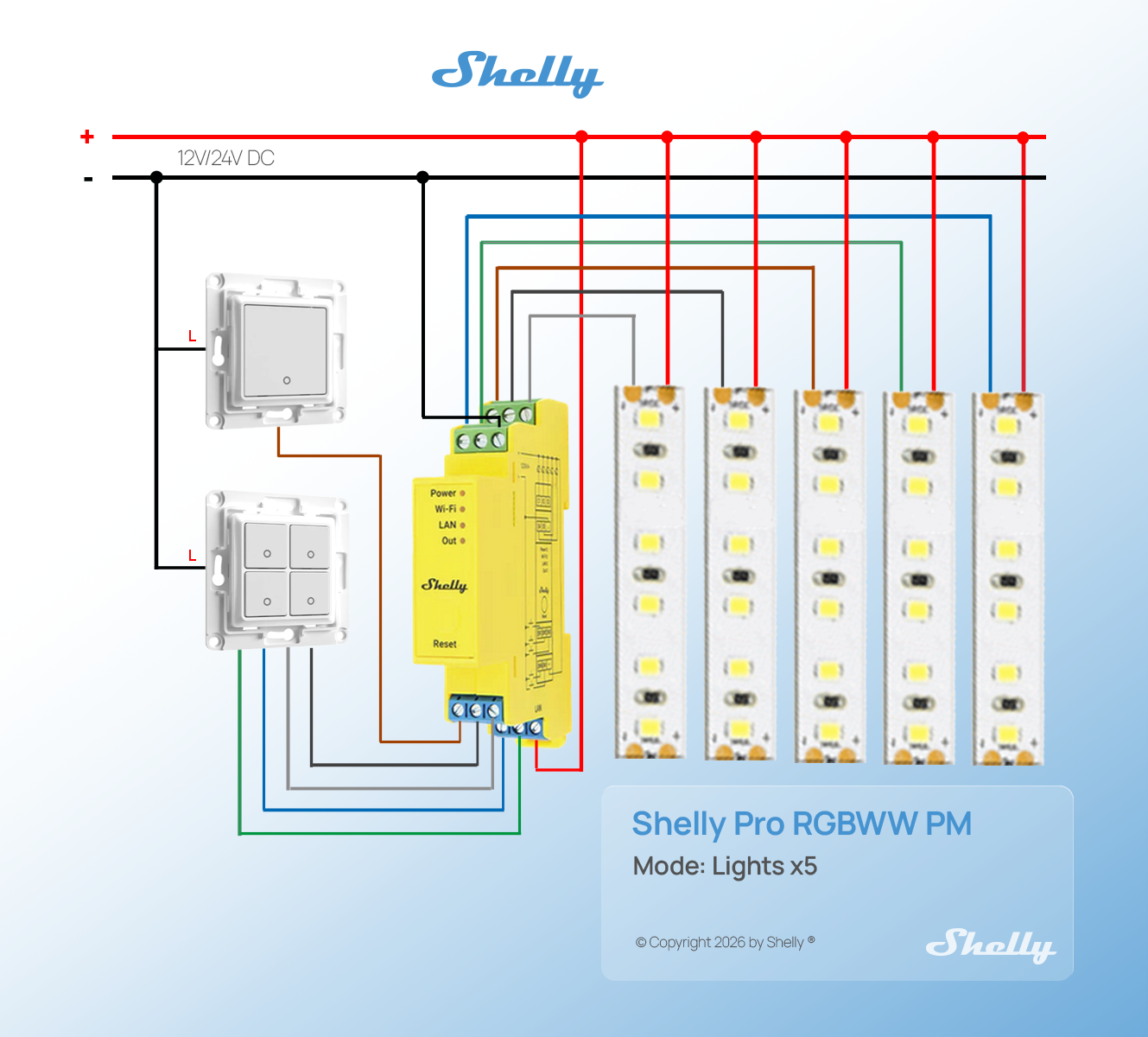

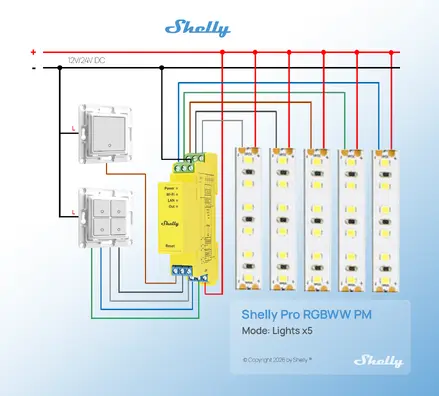

Pro RGBWW PM 5x LED Strip.png
602.49 kB
1,329 × 1,200

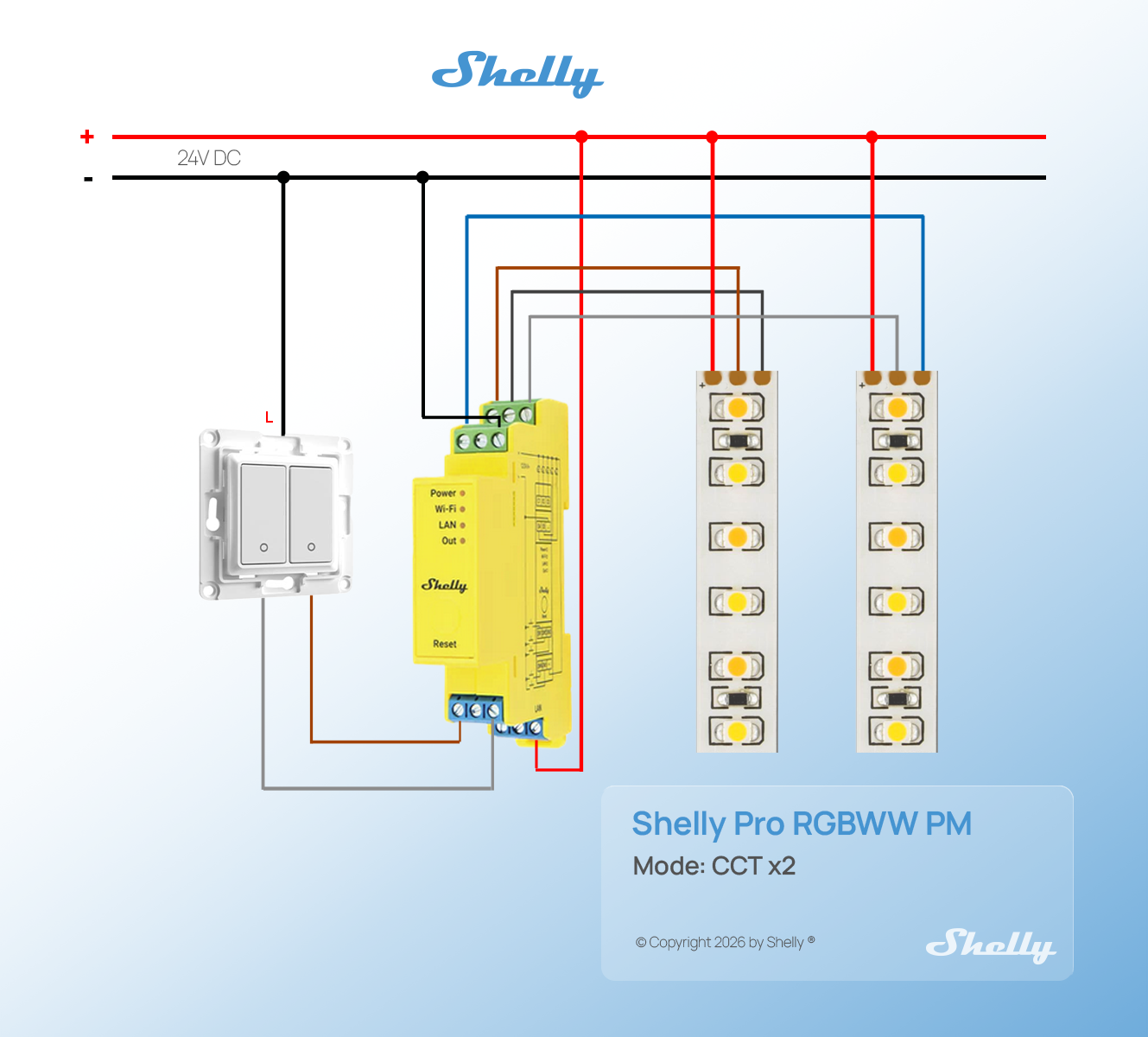

Pro RGBWW PM CCT X2 LED Strip.png
605.24 kB
1,329 × 1,200

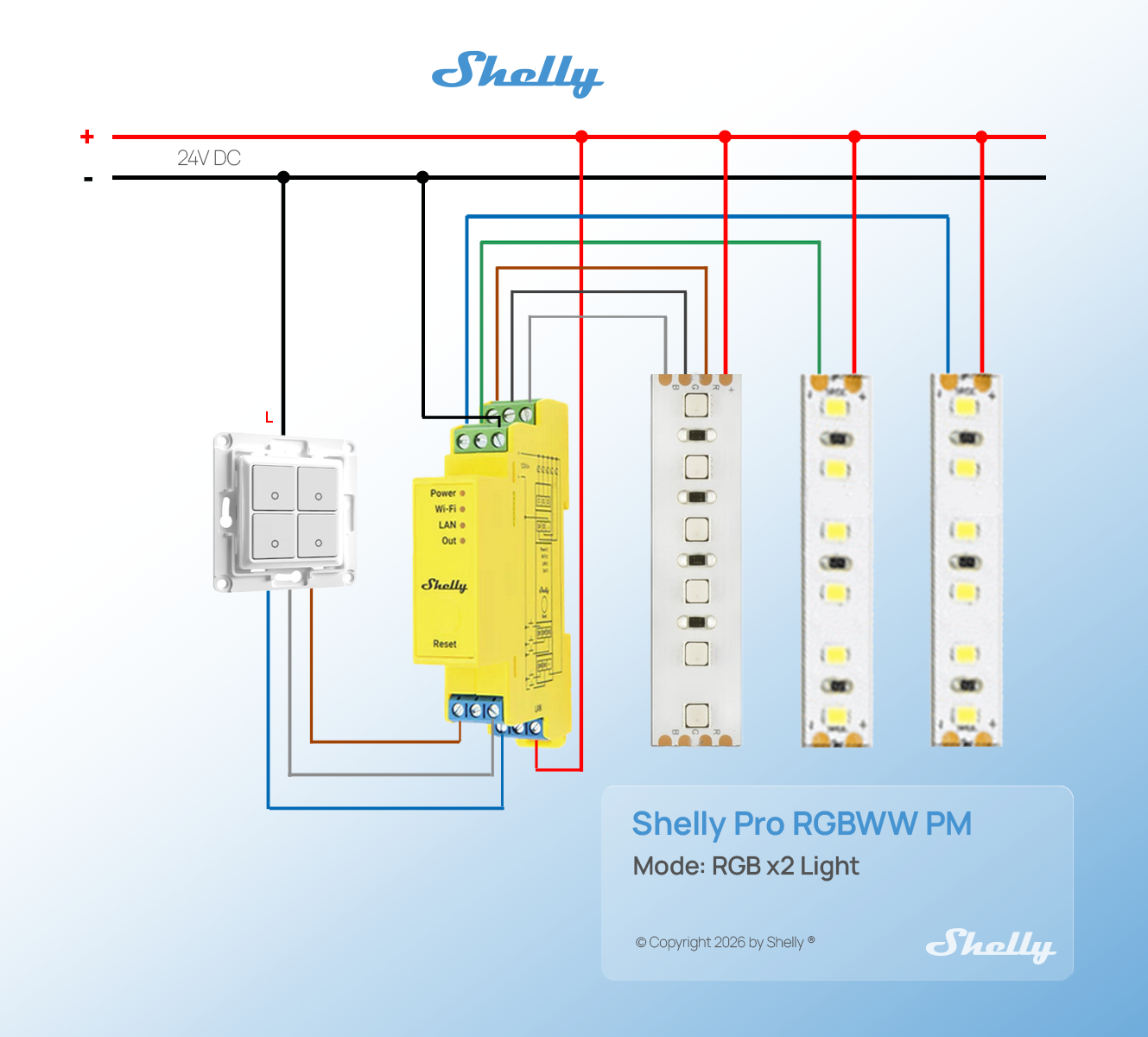

Pro RGBWW PM RGB X2 Light LED Strip.png
655.93 kB
1,329 × 1,200

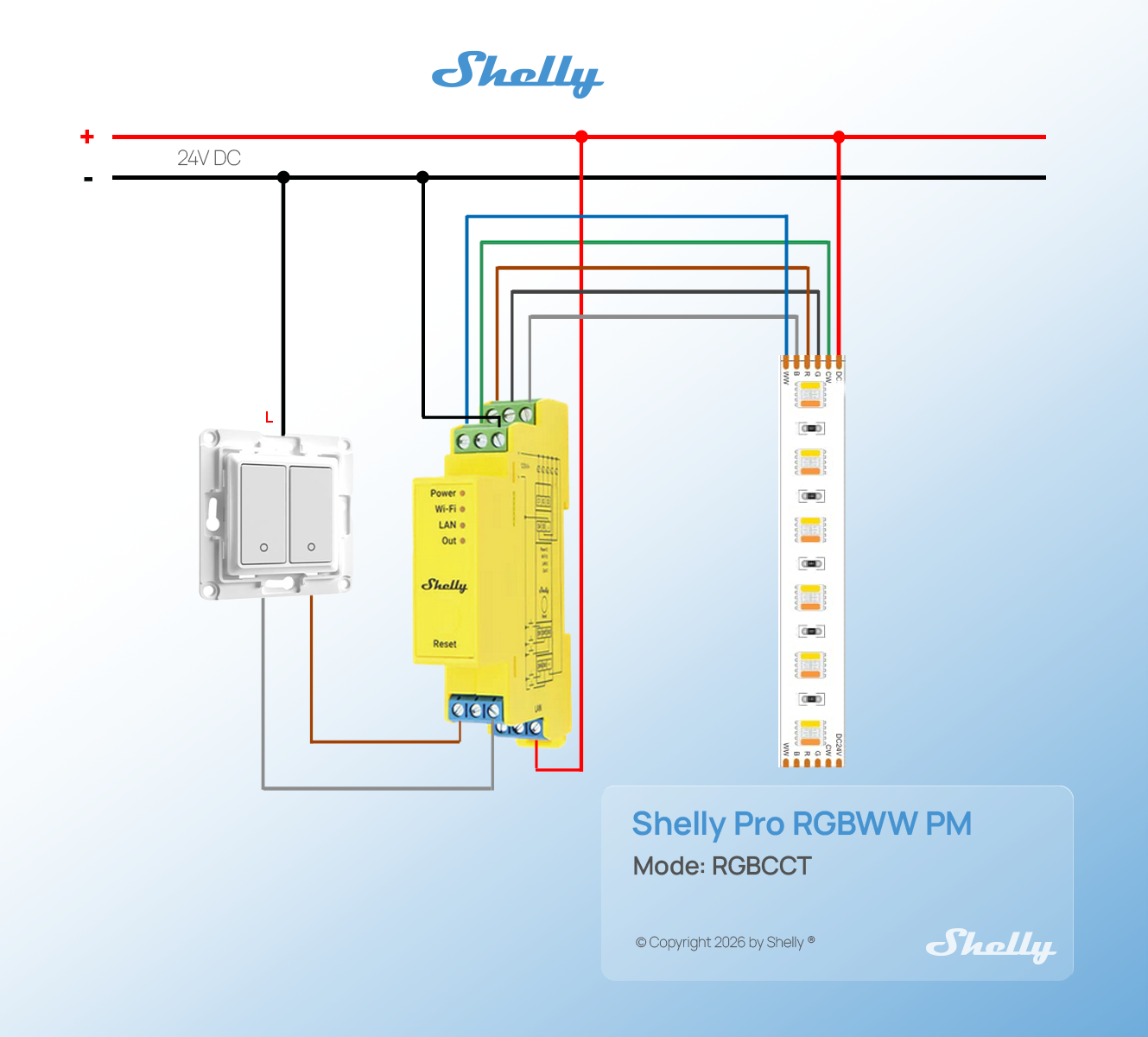

Pro RGBWW PM RGBCCT LED Strip.png
591.69 kB
1,329 × 1,200
