Anschlussdiagramme

Images

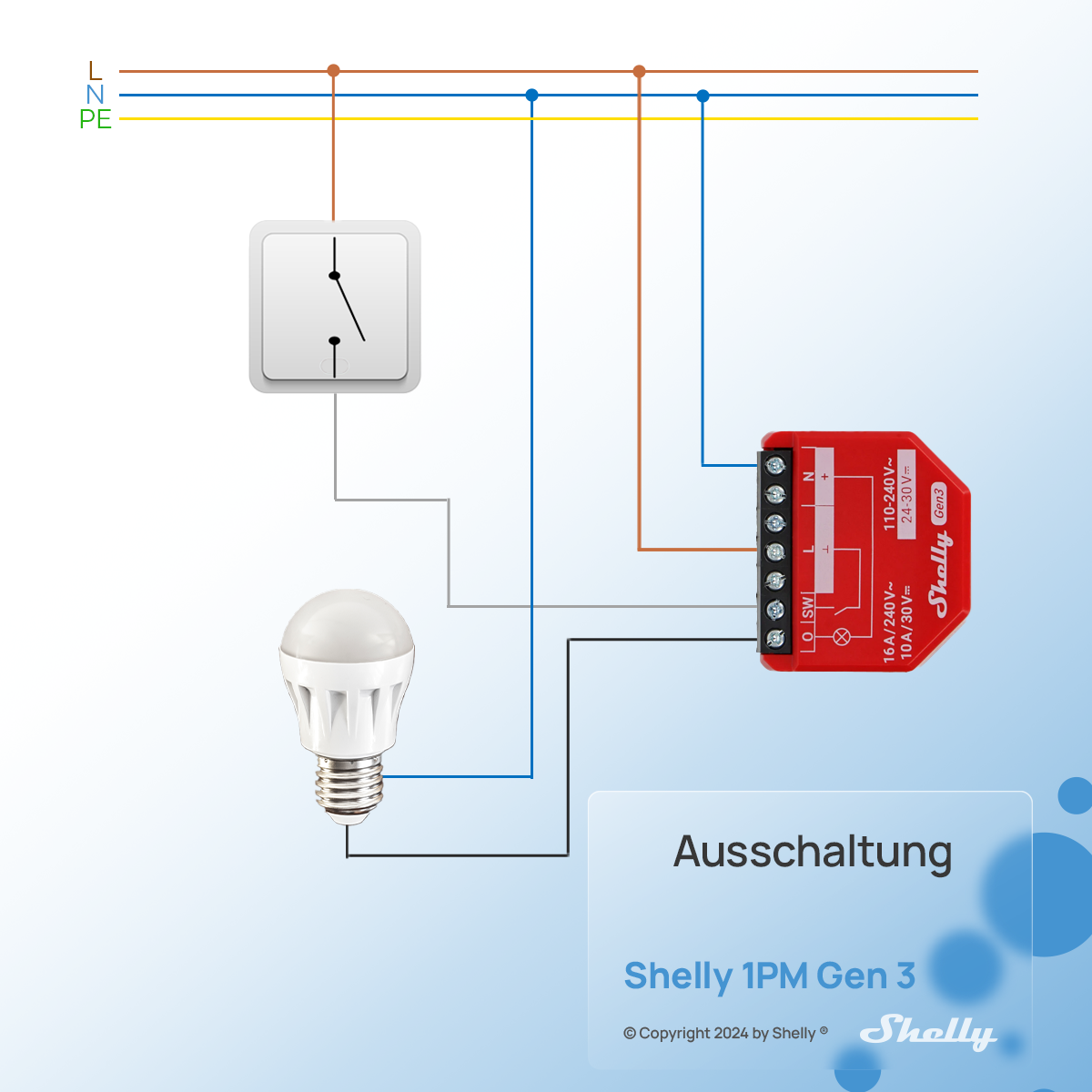

Shelly 1PM Gen3 Ausschaltung.png
- 588.71 kB
- 1,200 × 1,200
Shelly 1PM Gen3 Wechselschaltung.png
- 589.17 kB
- 1,200 × 1,200
Shelly 1PM Gen3 Tasterschaltung.png
- 586.75 kB
- 1,200 × 1,200

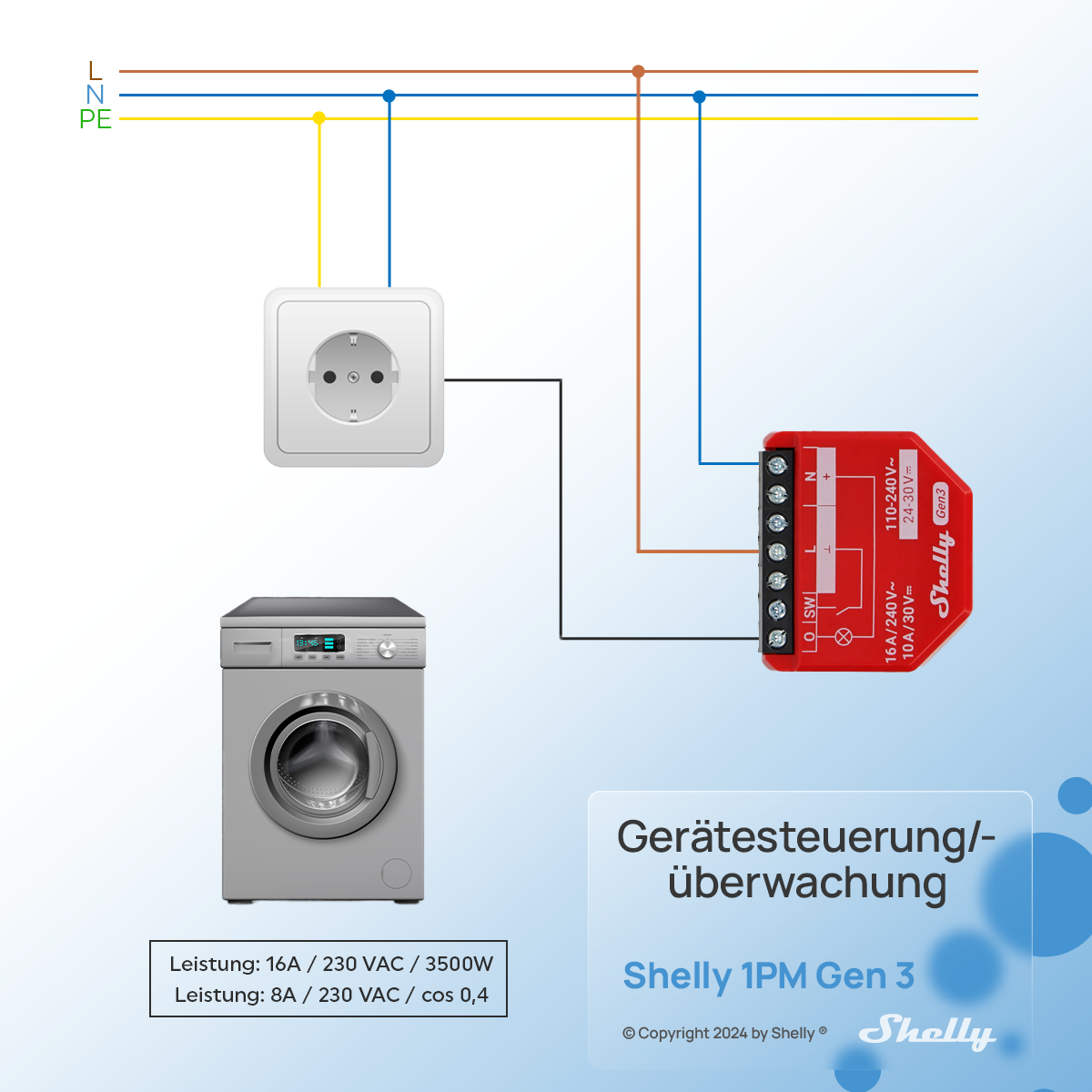

Shelly 1PM Gen3 Geräteüberwachung.png
- 614.67 kB
- 1,200 × 1,200
Shelly 1PM Gen3 SparWechselschaltung.png
- 593.76 kB
- 1,200 × 1,200

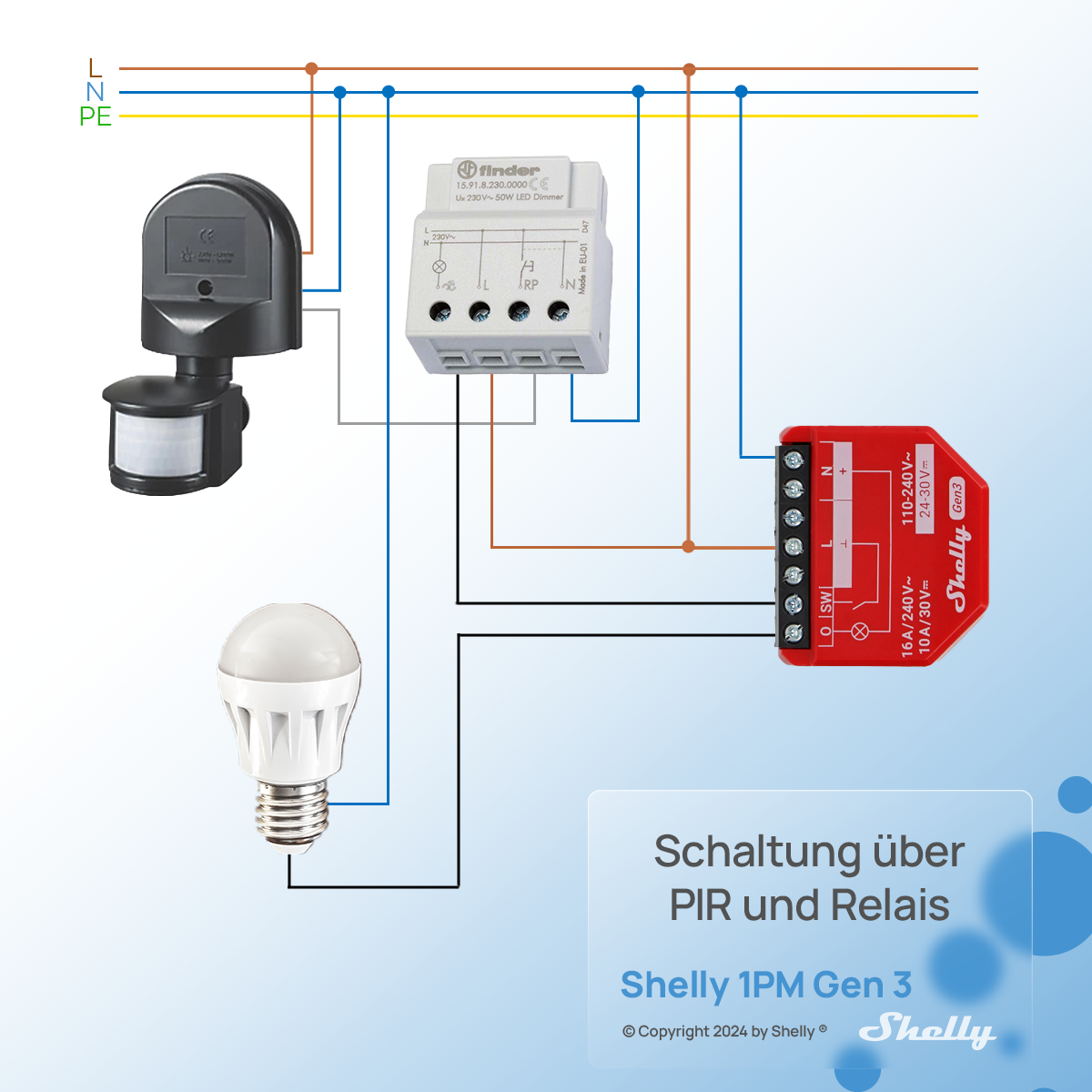

Shelly 1PM Gen3 Schaltung PIR_Relais.png
- 726.79 kB
- 1,200 × 1,200

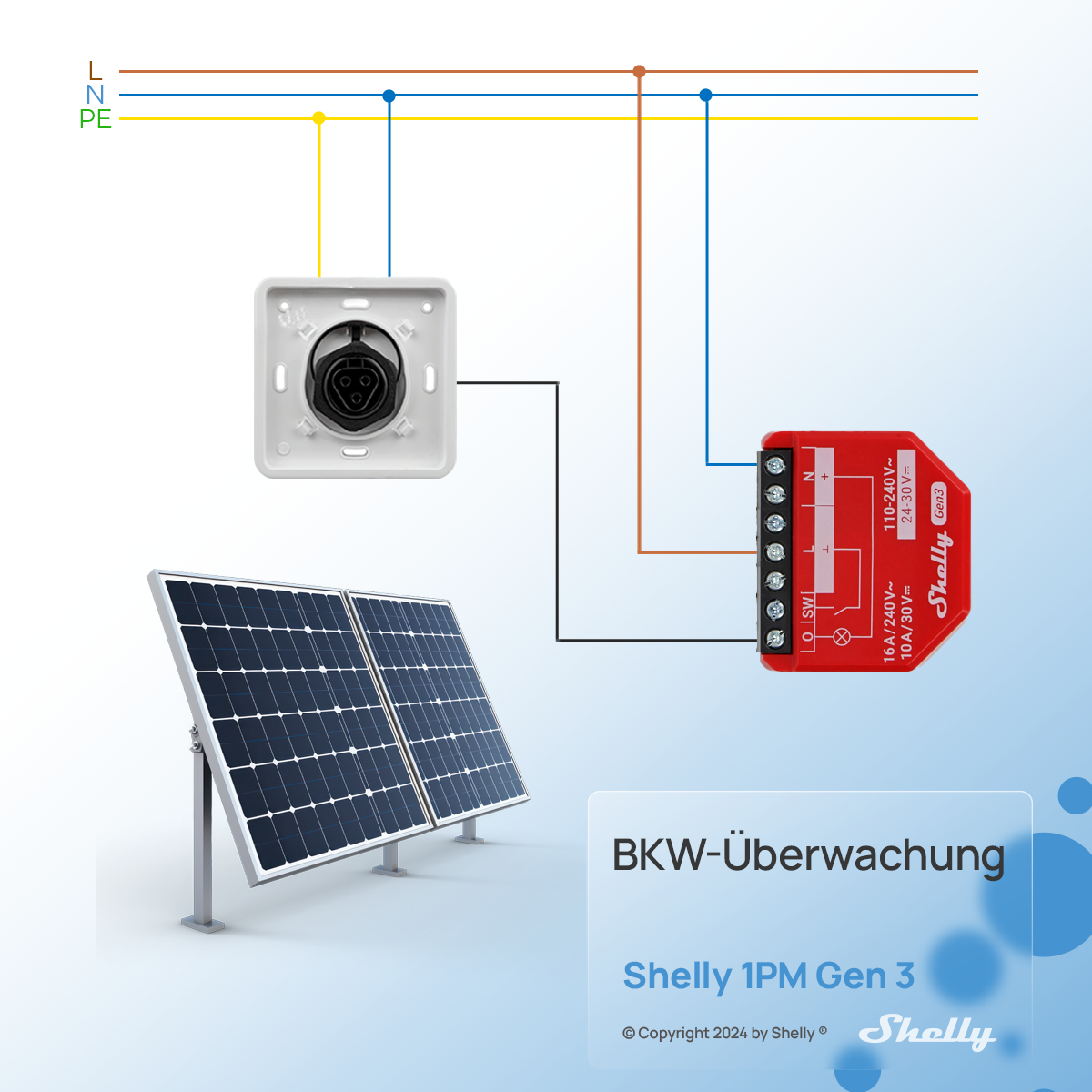

Shelly 1PM Gen3 BKW-Überwachung.png
- 833.68 kB
- 1,200 × 1,200

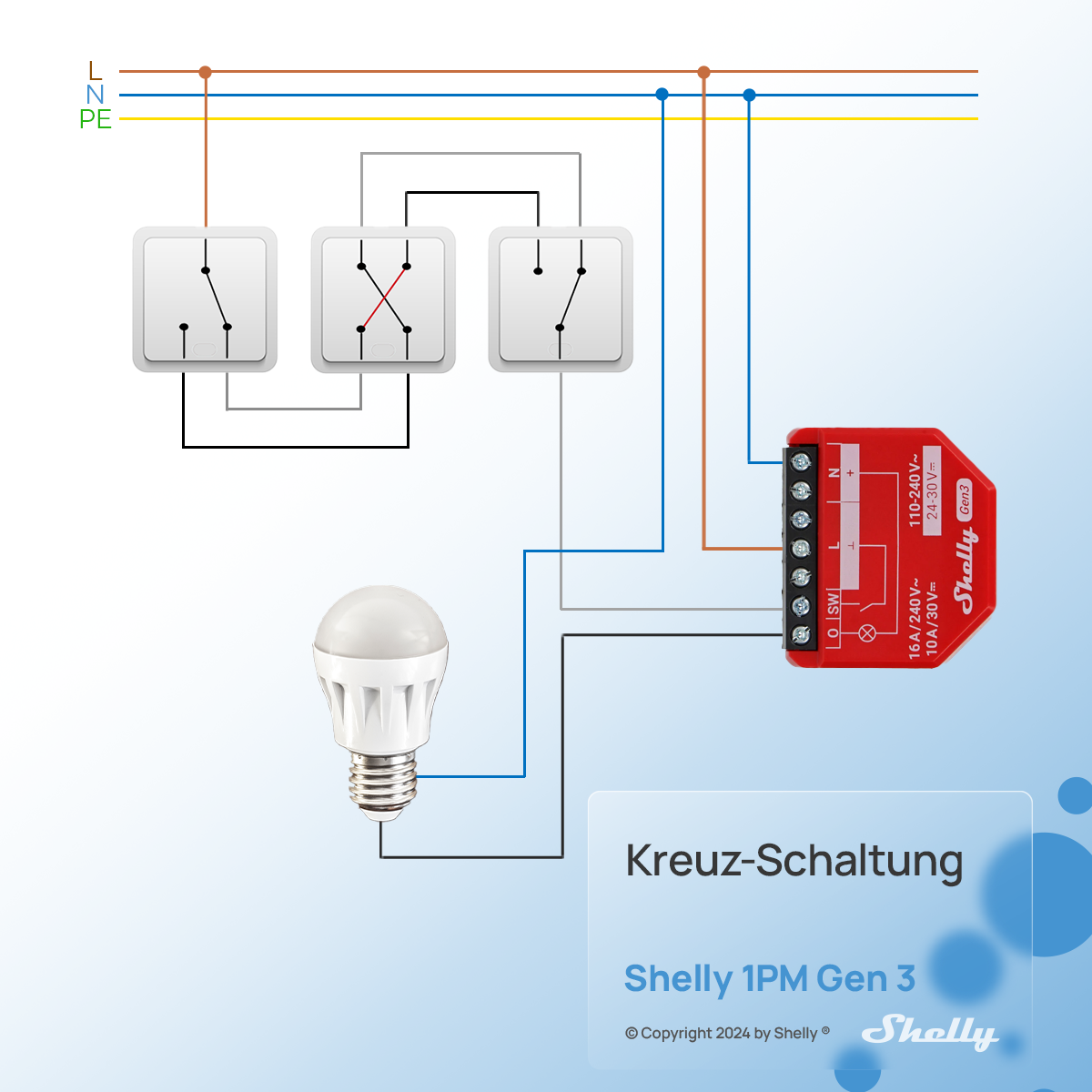

Shelly 1PM Gen3 Kreuzschaltung.png
- 593.75 kB
- 1,200 × 1,200
Shelly 1PM Gen3 Schaltung PIR.png
- 654.6 kB
- 1,200 × 1,200
