Shelly 1PM Mini Gen 3

  • November 28, 2024 at 6:51 PM
  • 0 Replies

VPN/Proxy detected

It appears that you are using a VPN, or proxy service. Please note that using such a service may limit the functionality of this website.

Anschlussdiagramme

Images

  • 1PM Mini Gen3 Gerätesteuerung_überwachung.png
    • 579.12 kB
    • 1,200 × 1,200
  • 1PM Mini Gen3 Ausschaltung 2.png
    • 574.94 kB
    • 1,200 × 1,200

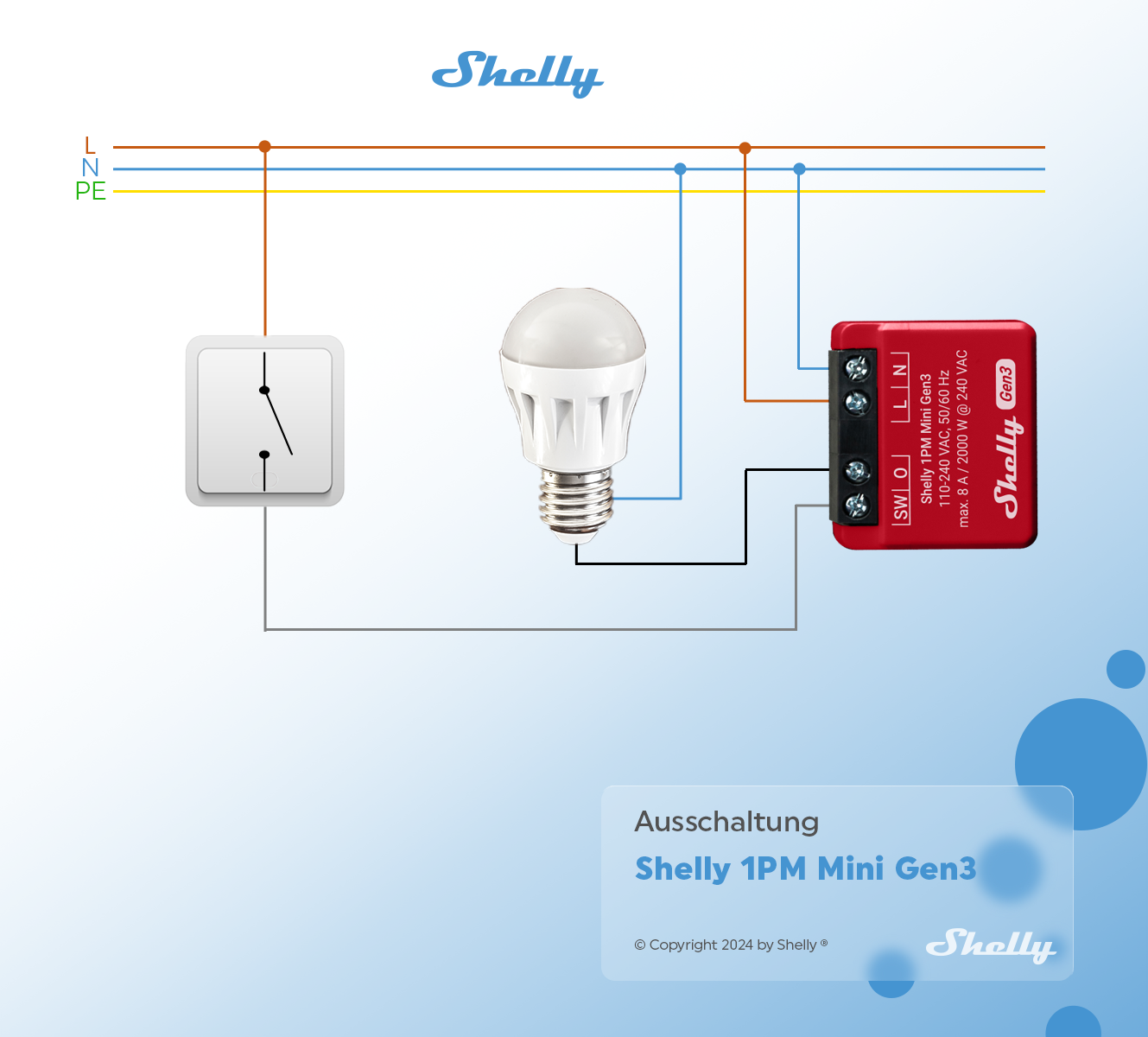

  • 1PM Mini Gen3 Ausschaltung.png
    • 609.91 kB
    • 1,329 × 1,200

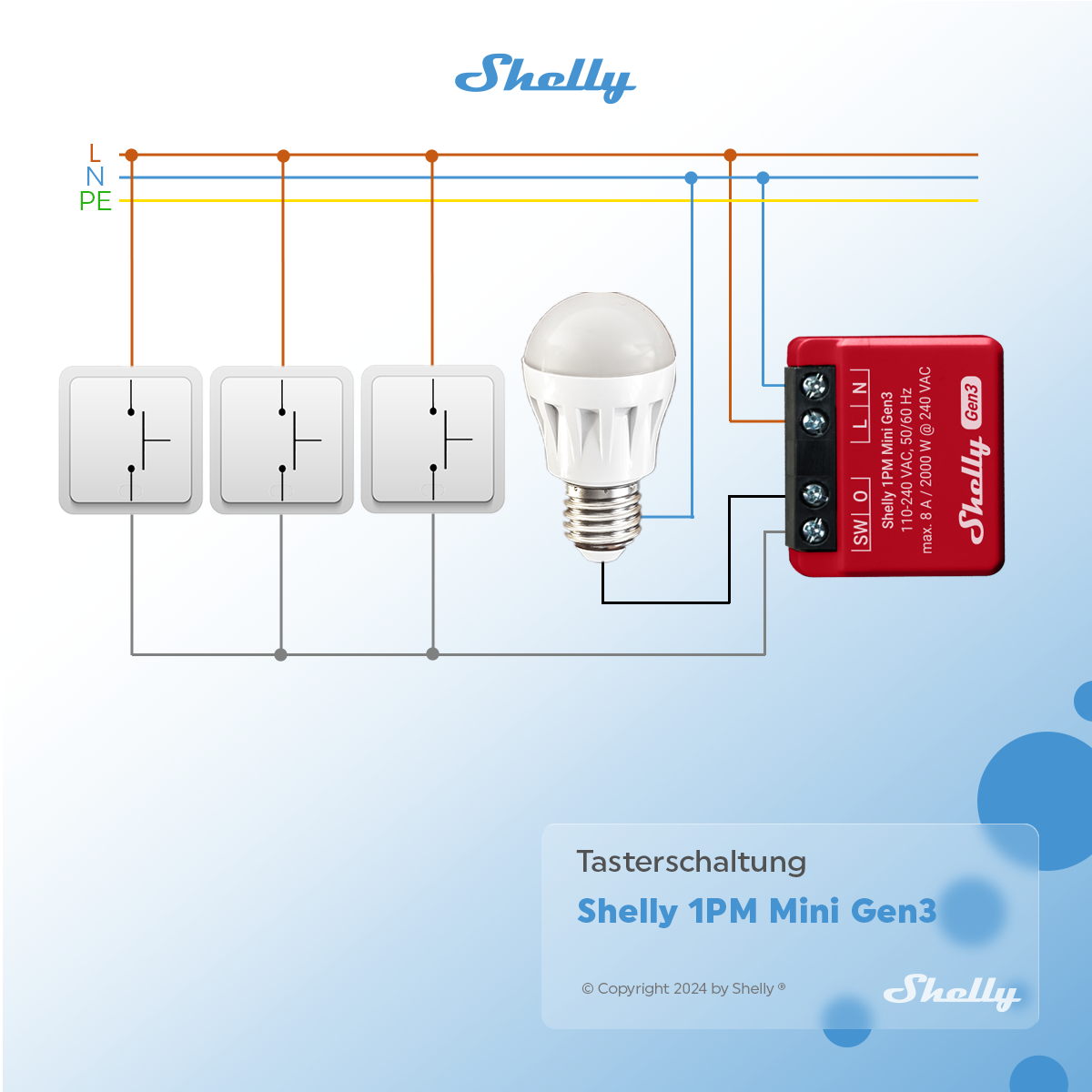

  • 1PM Mini Gen3 Tasterschaltung.png
    • 574.66 kB
    • 1,200 × 1,200

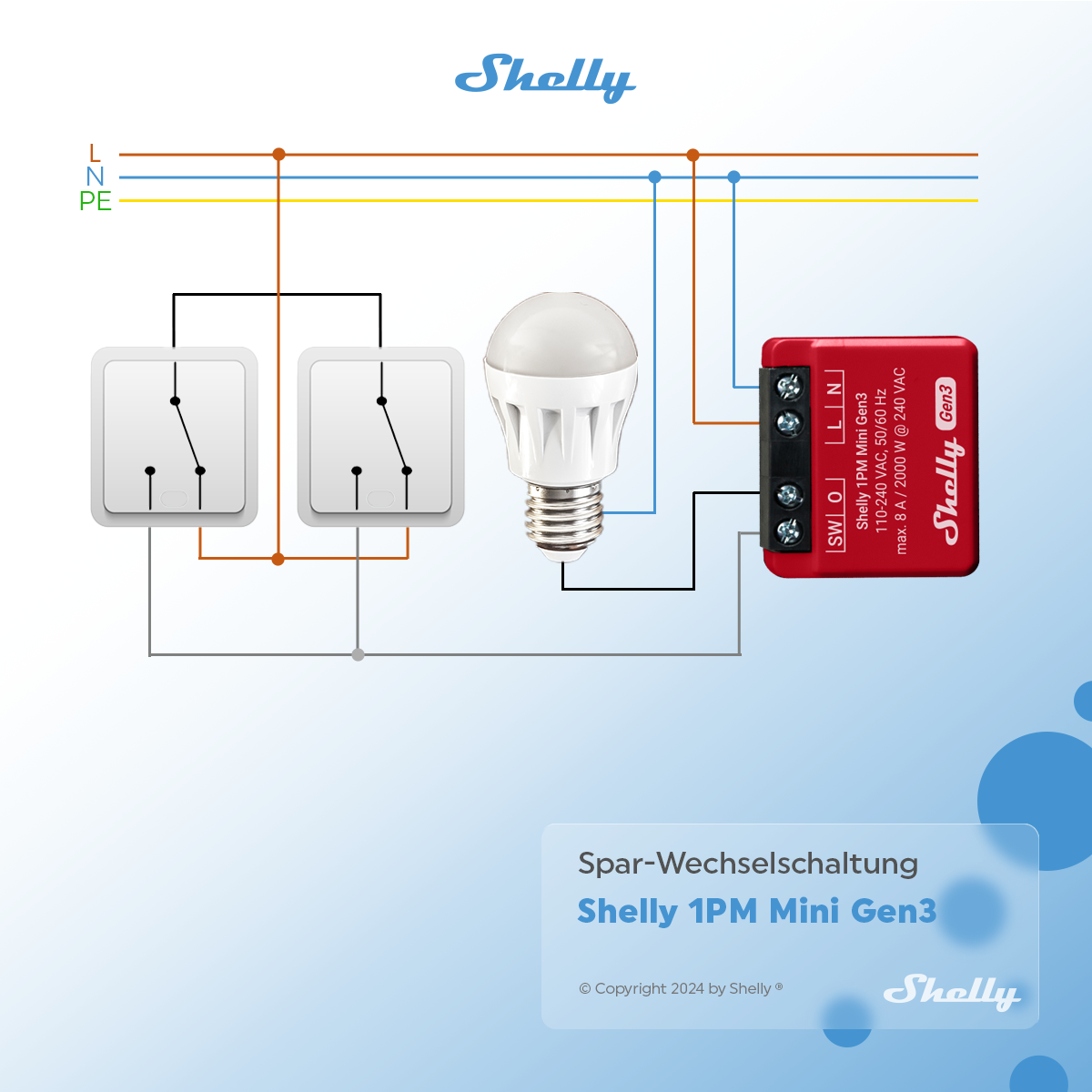

  • 1PM Mini Gen3 Spar-Wechselschaltung.png
    • 580.61 kB
    • 1,200 × 1,200
  • 1PM Mini Gen3
