Shelly Plus 1

  • November 27, 2024 at 7:13 PM
  • 0 Replies

VPN/Proxy detected

It appears that you are using a VPN, or proxy service. Please note that using such a service may limit the functionality of this website.

Anschlussdiagramme

Images

  • Plus 1 Bewässerung Selv-konform.png
    • 370.03 kB
    • 1,200 × 628

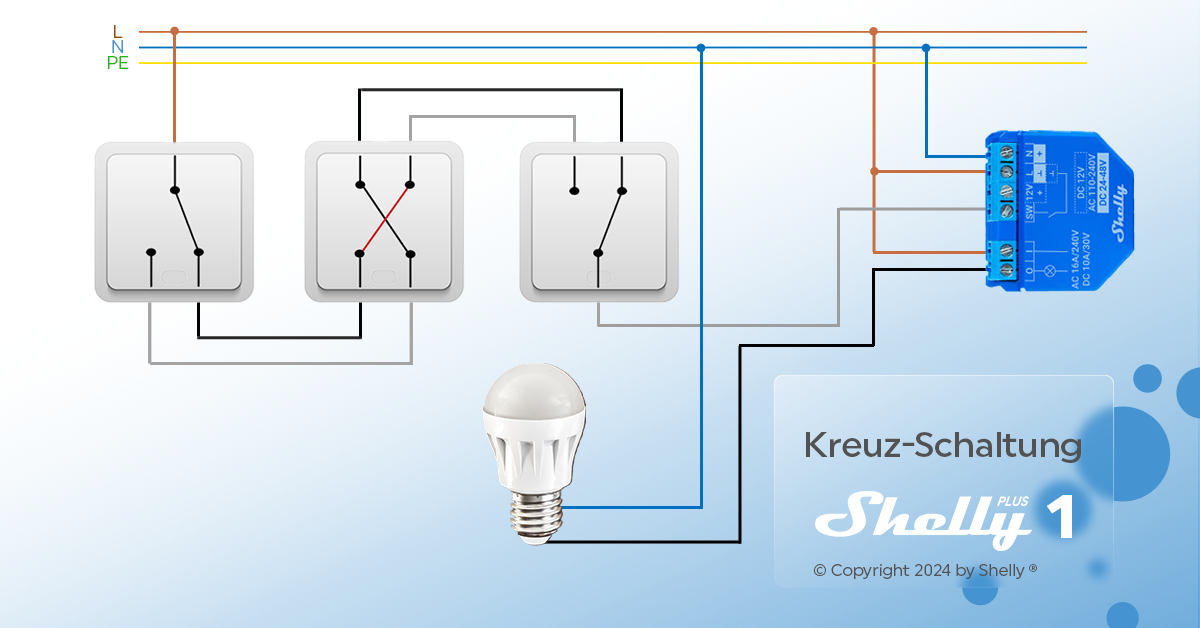

  • Plus 1 Kreuzschaltung.png
    • 305.13 kB
    • 1,200 × 628

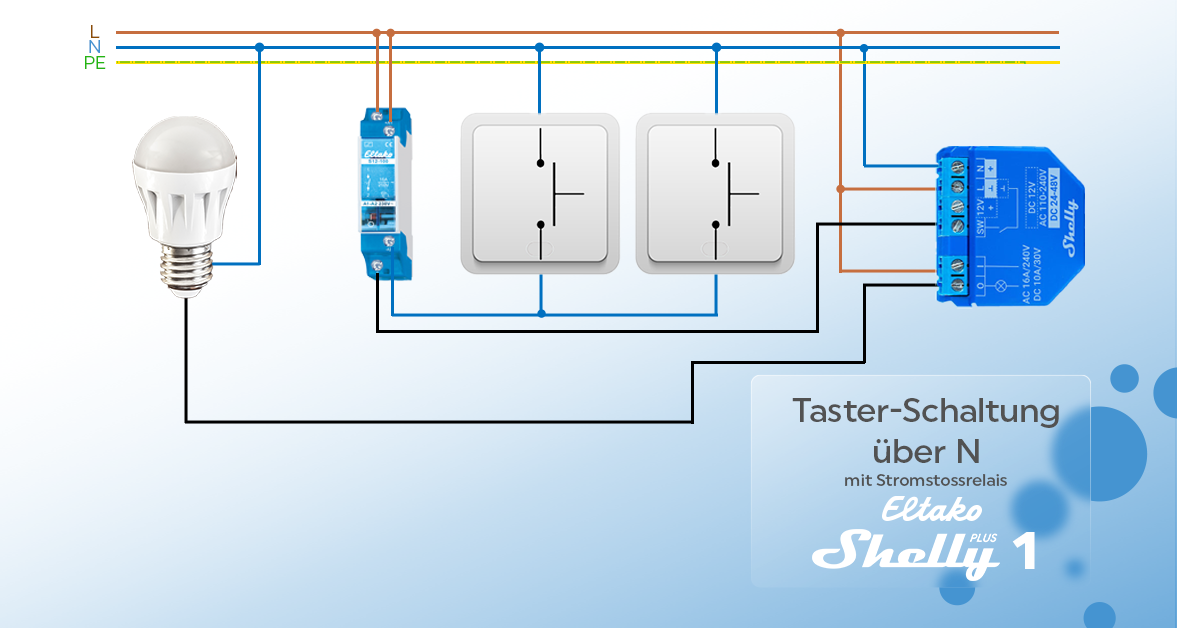

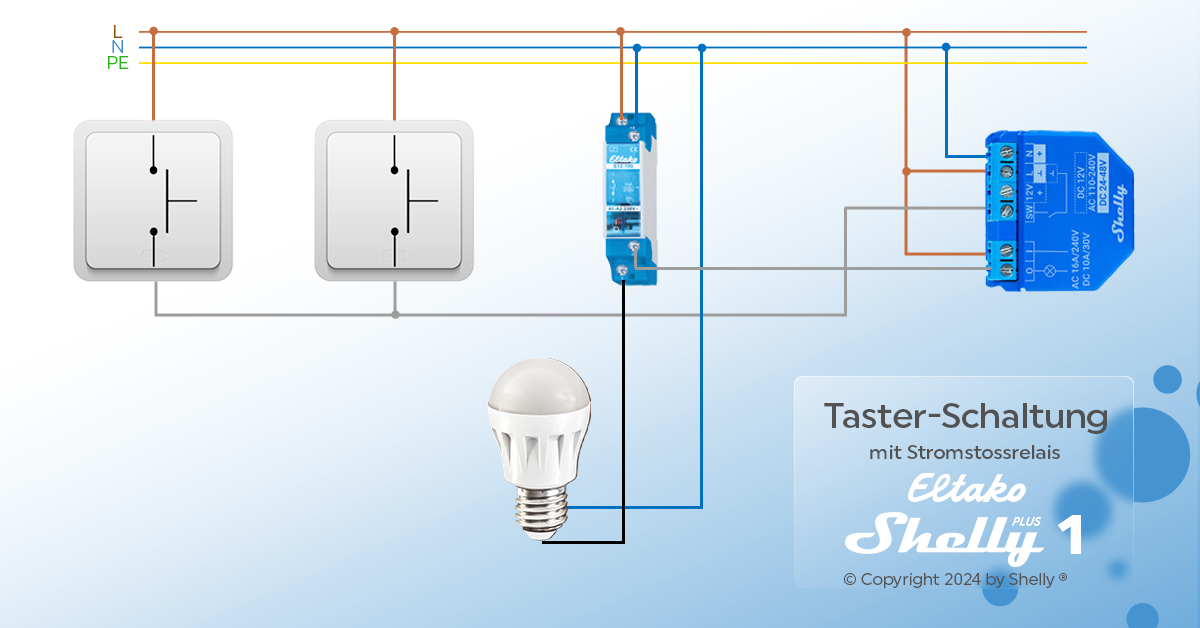

  • Plus 1 TasterSchaltung N_Eltako.png
    • 314.23 kB
    • 1,177 × 628
  • Plus 1 Steuerung Torantrieb_V1.png
    • 371.62 kB
    • 1,200 × 628

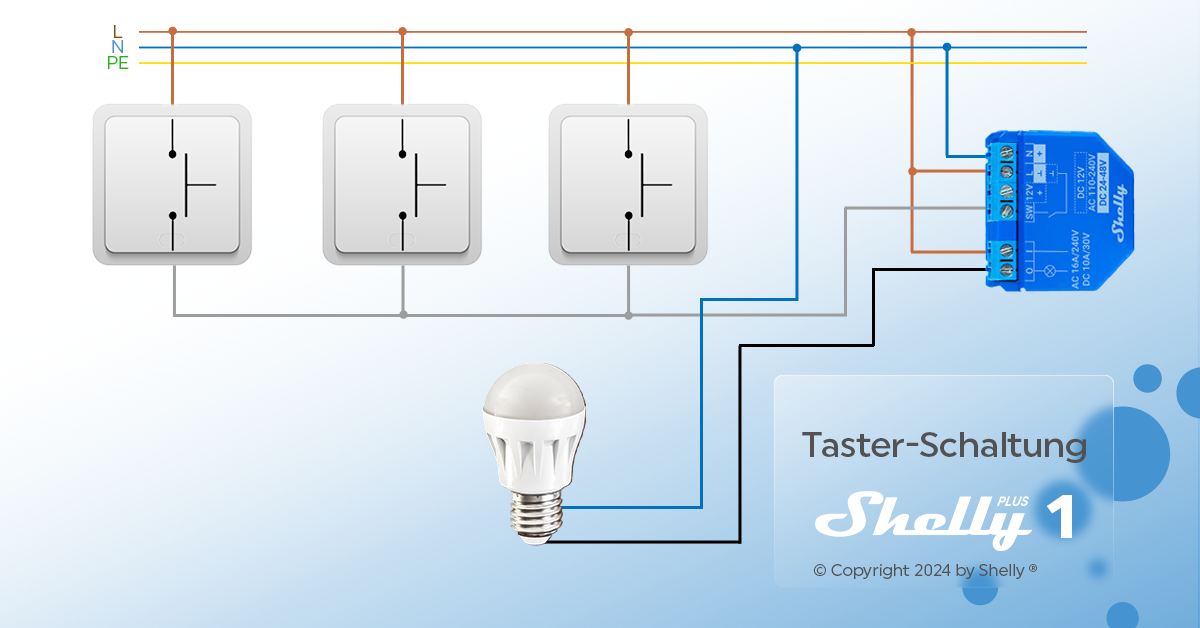

  • Plus 1 TasterSchaltung_.png
    • 296.82 kB
    • 1,200 × 628

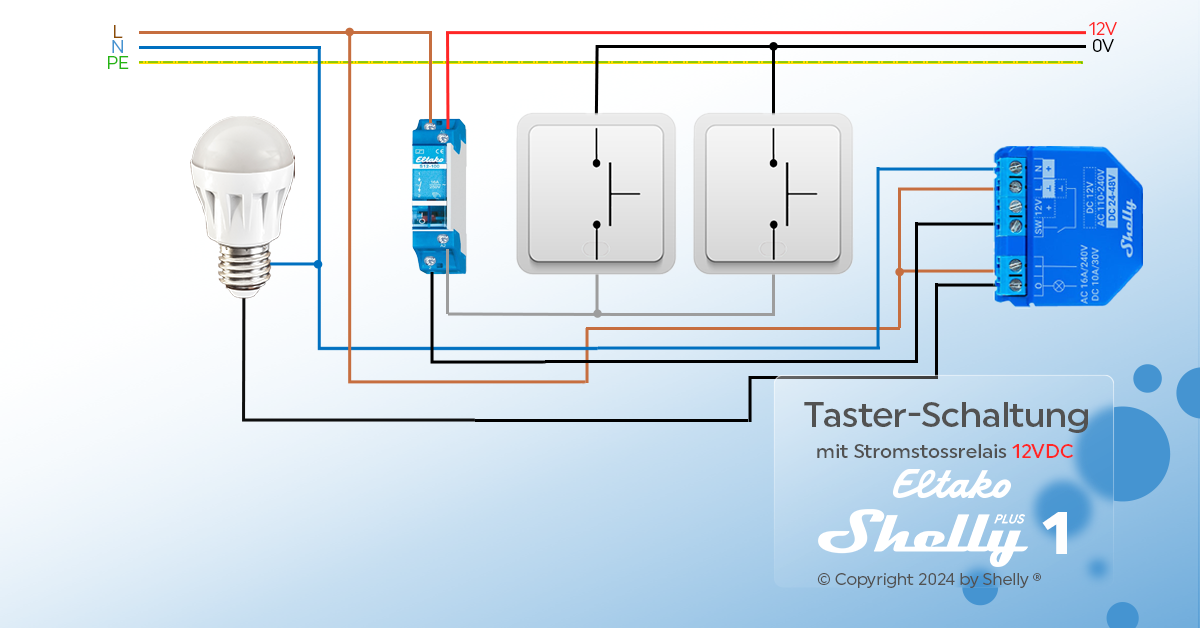

  • Plus 1 TasterSchaltung_Eltako 12V.png
    • 317.85 kB
    • 1,200 × 628
  • Plus 1 TasterSchaltung_Eltako_V1_v.2.0.png
    • 321.54 kB
    • 1,200 × 628

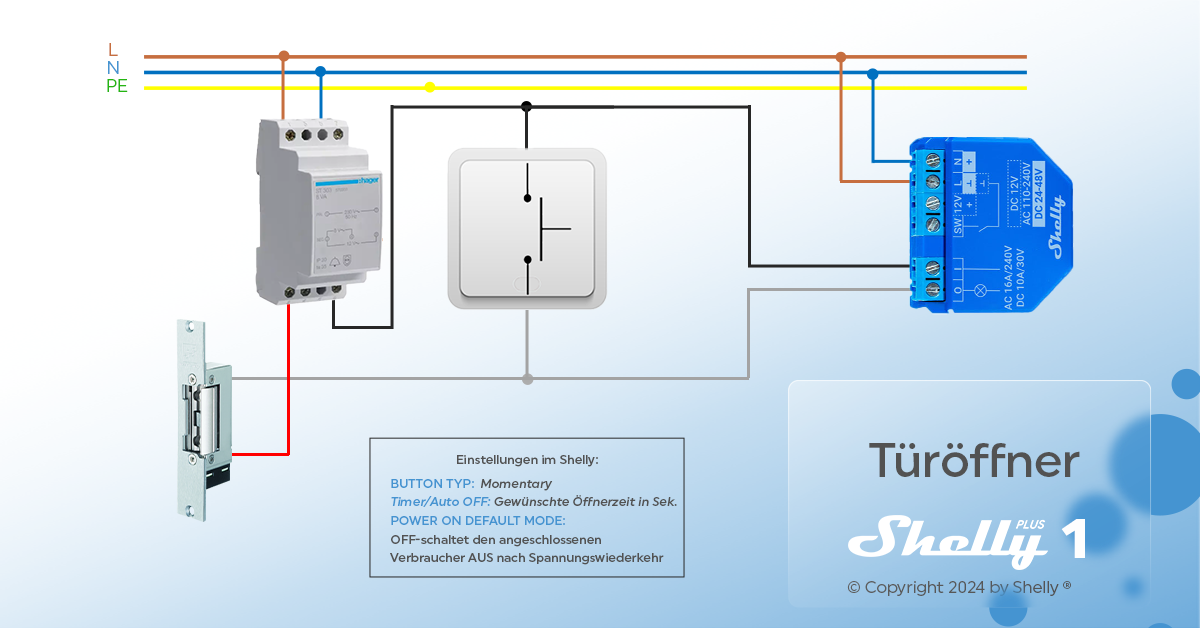

  • Plus 1 Türöffner.png
    • 331.01 kB
    • 1,200 × 628
  • Plus 1 Ausschaltung.png
    • 567.67 kB
    • 1,200 × 1,200

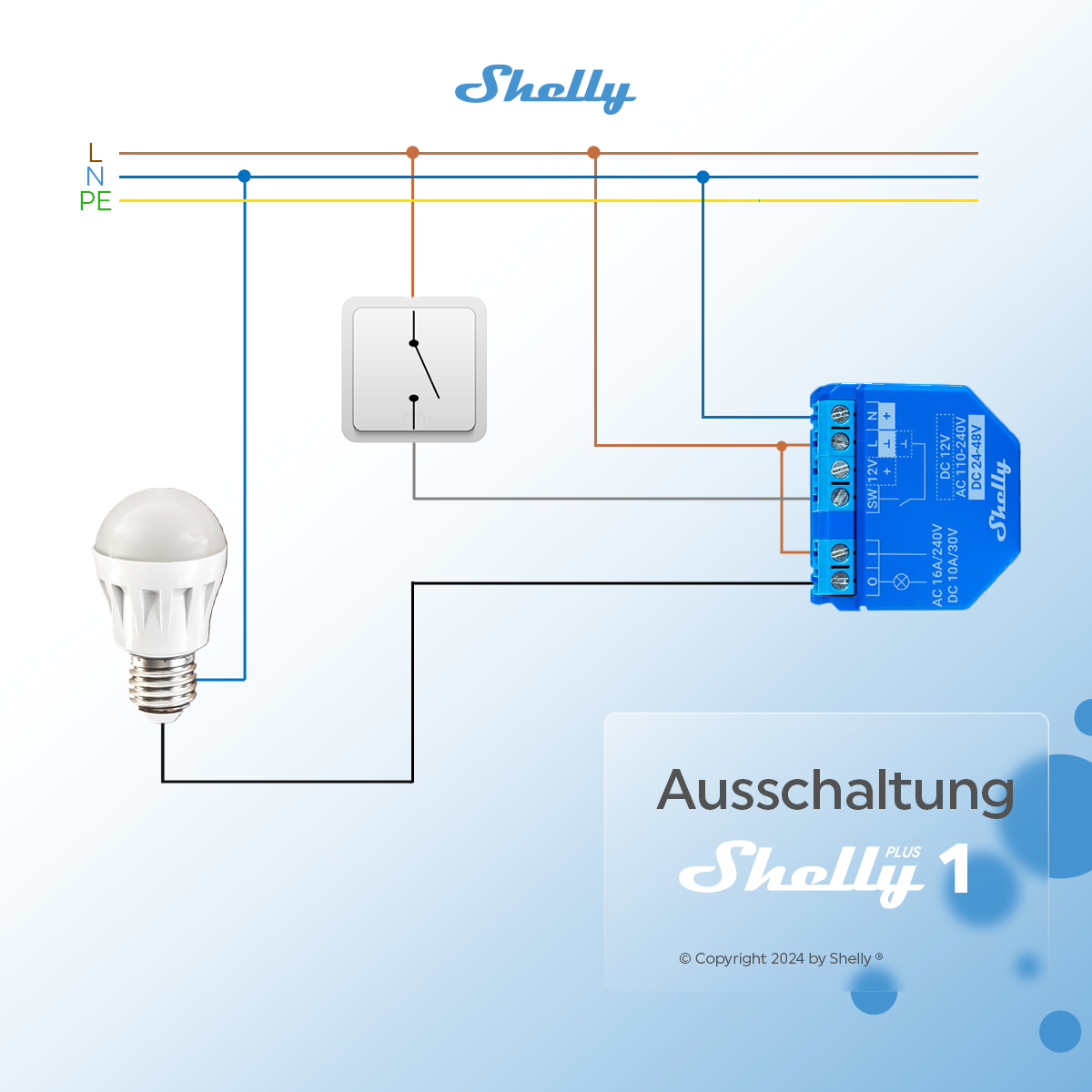

  • Plus 1 SparWechselschaltung2.png
    • 564.17 kB
    • 1,200 × 1,200

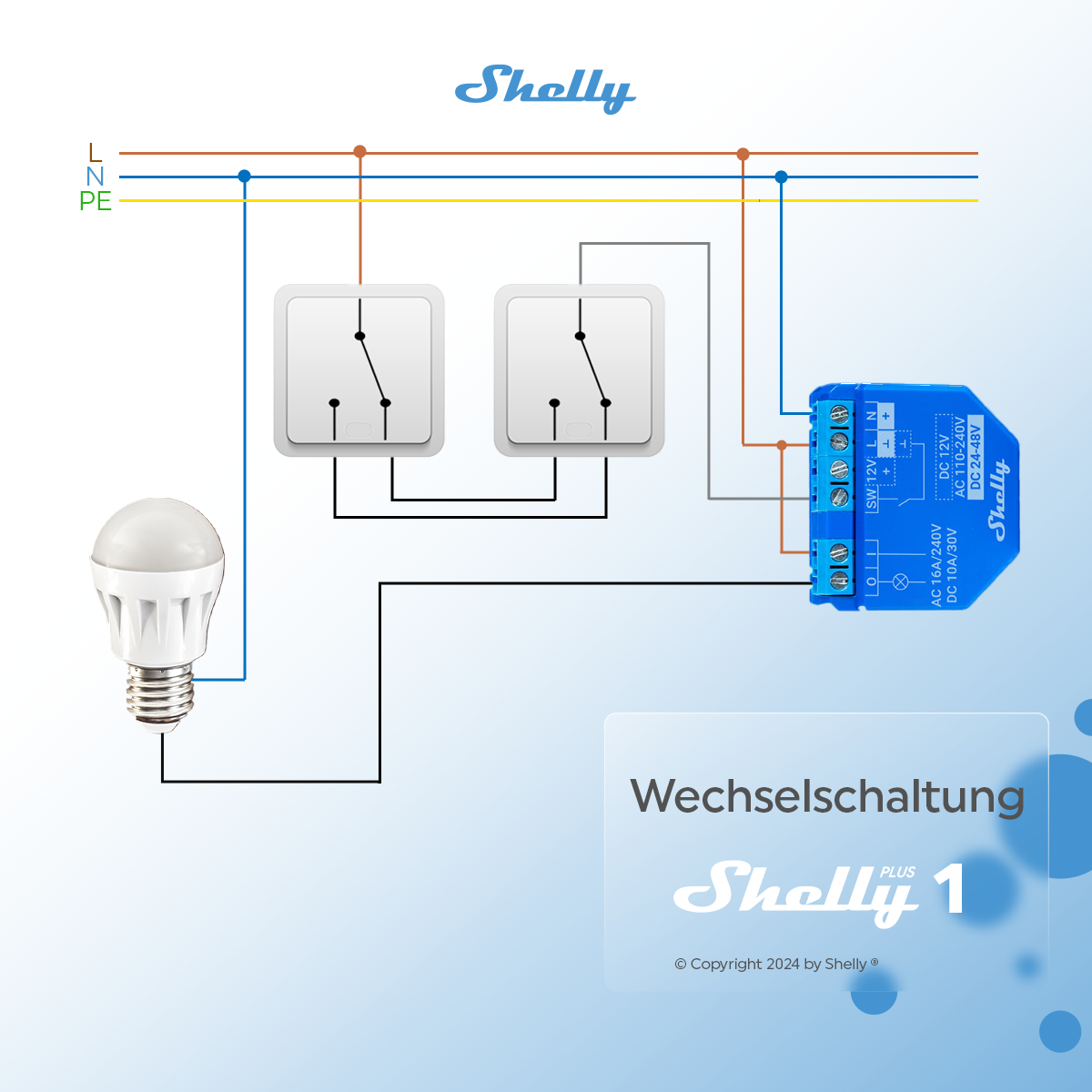

  • Plus 1 Wechselschaltung.png
    • 561.49 kB
    • 1,200 × 1,200

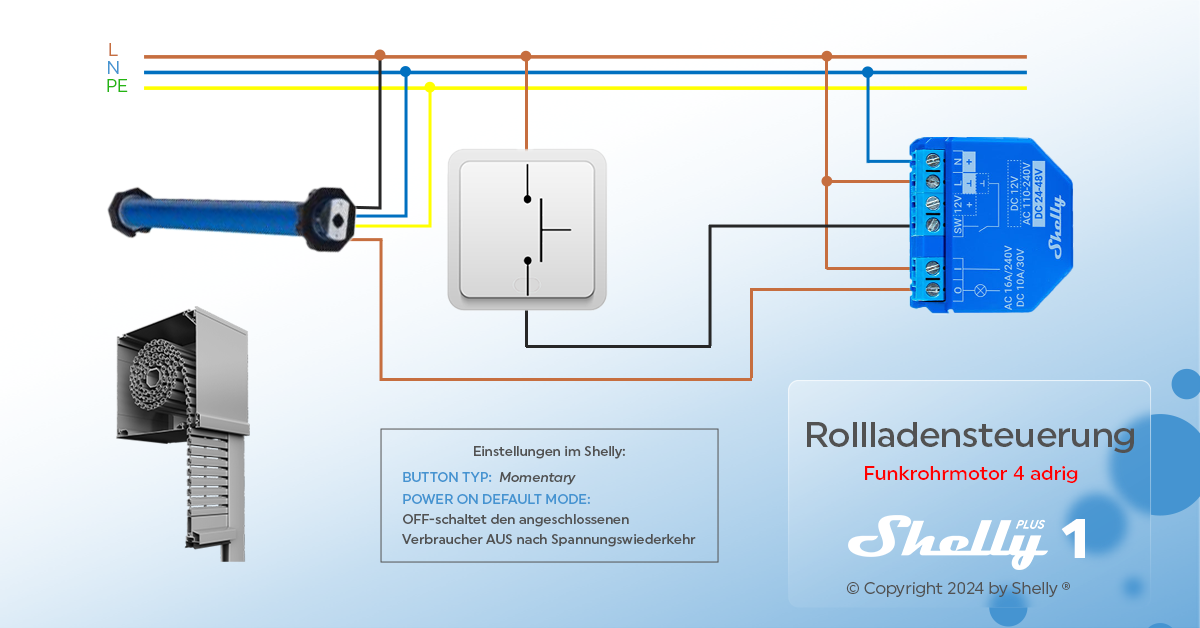

  • Plus 1 Funkrohrmotor Rademacher 4adrig.png
    • 349.5 kB
    • 1,200 × 628
  • Plus 1 TasterSchaltung N_Eltako 2.png
    • 309.6 kB
    • 1,177 × 628
  • Plus 1 Tasterschaltung 12VDC.png
    • 589.55 kB
    • 1,200 × 1,200

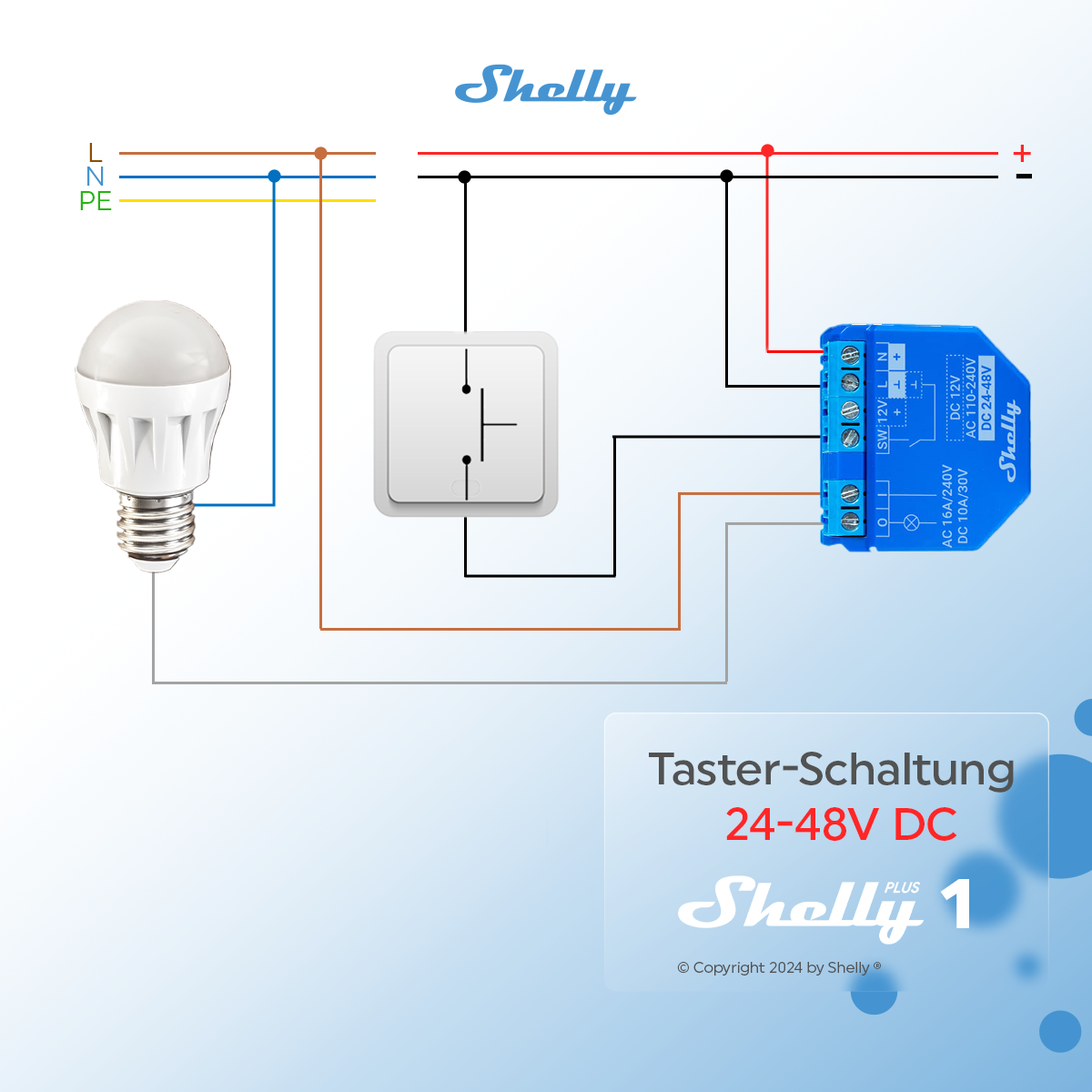

  • Plus 1 Tasterschaltung 24-48VDC.png
    • 587.05 kB
    • 1,200 × 1,200
  • Shelly Plus 1
  • Previous Article Shelly Plus 1 Mini
  • Next Article Shelly Plus PM Mini
